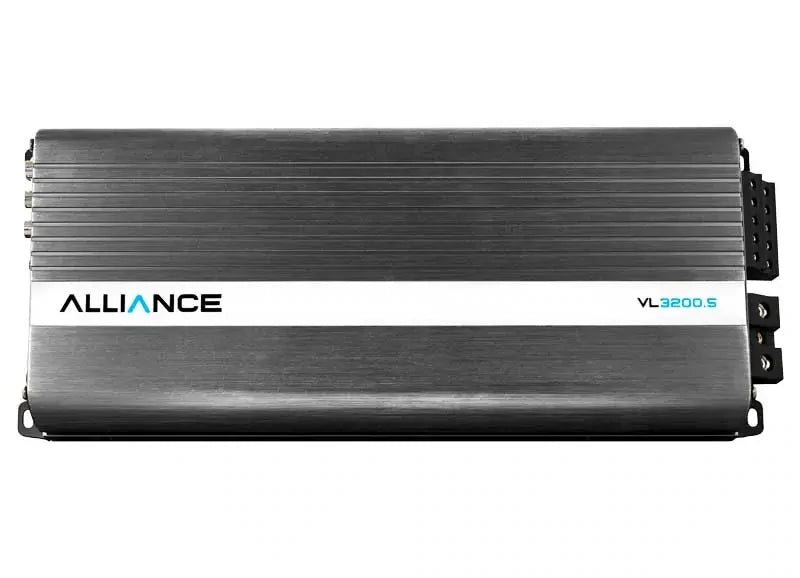

Monoblock 3,200W Class D Amplifier

• Small Footprint Class D Amplifier
• Utilizes Class D Technology
• 0-12dB Variable Bass Boost
• Includes Sub Level Remote
• 80% more efficient than traditional Class D amplifiers
• Peak Power: 3200W
• Power RMS 2Q@14.4V:4×150Watts +1×510 Watts
• Power RMS 4Q@ 14.4V:4×90 Watts+1×300 Watts
• THD+N @ Nominal Power:4×80 Watts 4Q+1×510 Watts 2Q
• Frequency Response:10~30kHz+10~260Hz
• SNR:70dB+86dB
• Input Sensitivity:0.2V to 6V
• Damping Factor:100

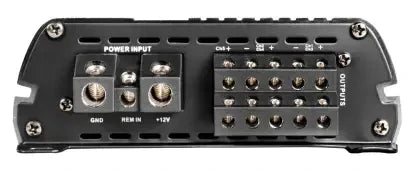

• Operating Voltage:8.5V to 16V

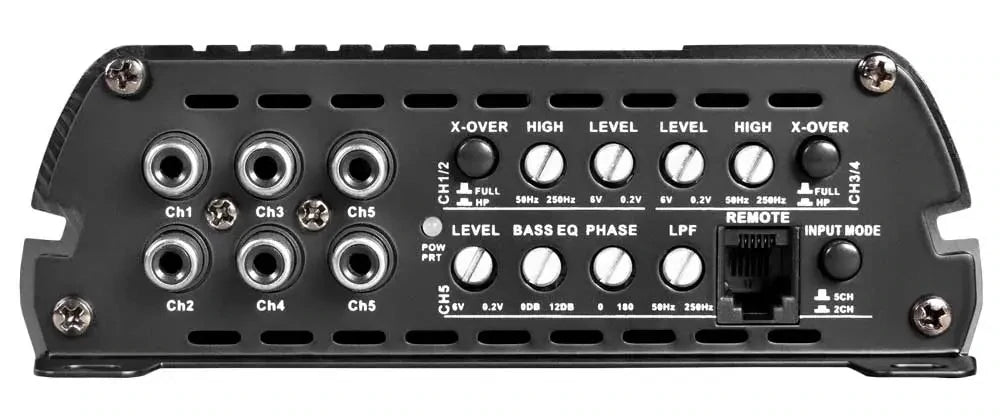

• High Pass Filter(CH 1~CH4):50Hz to 250Hz
• Low Pass Filter(CH5):50Hz to 250Hz
• Phase Control: 0-180
• Total Efficiency:80%
• Max Current Draw(A):110
• Music Current Draw(A):80
• Dimensions:5.8″Wx13.8″L×1.9″H
