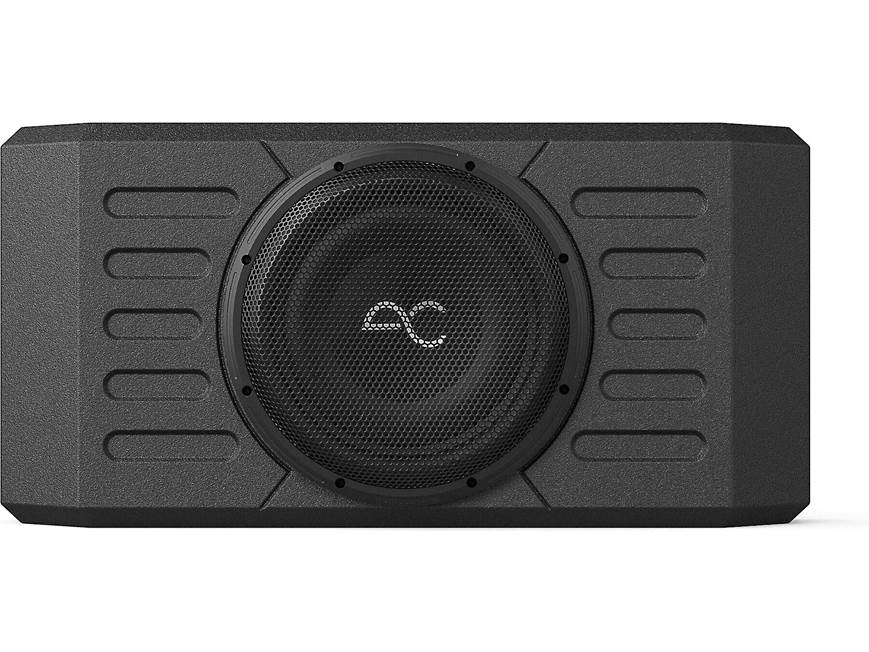

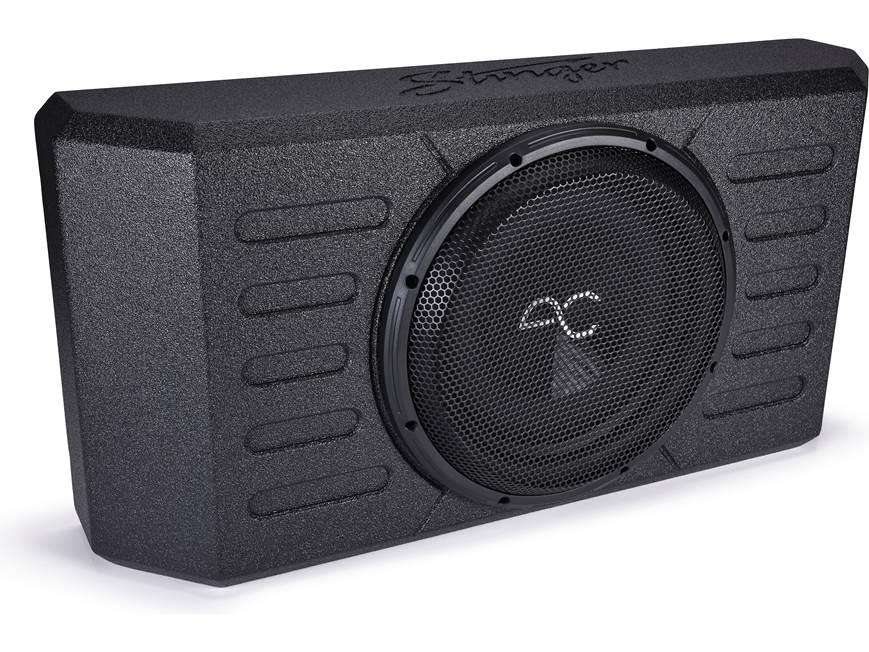

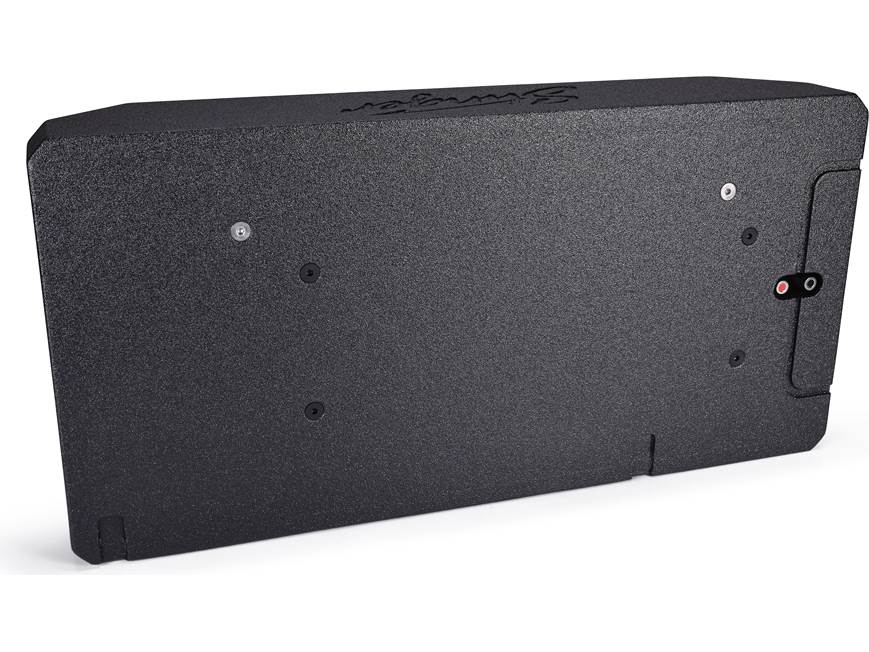

The AudioControl TXJWB12 is a premium swing gate-mounted 12-inch loaded subwoofer enclosure engineered specifically for 2007+ Jeep Wrangler JK and JL models. Designed to mount directly to the rear tailgate swing gate, the TXJWB12 delivers powerful deep bass while preserving valuable cargo space inside the Jeep. Featuring a weather-resistant enclosure, rugged Roadkill-Armor coating, and a purpose-built 12-inch Space Series subwoofer, it’s one of the cleanest OEM-style bass upgrades available for Wrangler owners who want strong low-end performance without sacrificing storage

Main Features

  • Designed for 2007+ Jeep Wrangler JK & JL
  • Tailgate swing gate mounting design
  • Loaded sealed enclosure
  • Includes 12-inch Space Series subwoofer
  • 400W RMS / 800W peak power handling
  • Weather-resistant outdoor construction
  • Roadkill-Armor protective coating
  • Heavy-duty 11-layer plywood enclosure
  • Poly-fill internal damping
  • UV, crack, peel, and corrosion resistance
  • Cargo-space-saving design
  • Includes grille and mounting hardware

Specs

Specification Details
Vehicle Fitment 2007+ Jeep Wrangler JK/JL
Enclosure Type Loaded Sealed
Subwoofer Size 12"
RMS Power Handling 400W RMS
Peak Power Handling 800W Peak
Final Impedance 2Ω
Frequency Response 20Hz – 250Hz
Sensitivity 87 dB
Internal Air Volume 0.87 ft³
Enclosure Dimensions 28.5" W x 14" H x 6.1" D
Weather Resistance Yes
Approx. Enclosure Weight 17.5 lbs
Approx. Speaker Weight 12.5 lbs

Installation Notes

Professional installation is recommended because:

  • Tailgate panel removal is required
  • Amplifier wiring through the Jeep cabin matters heavily
  • Proper weather sealing is important
