SX690H

SKU 210000004658
$549.99
$549.99

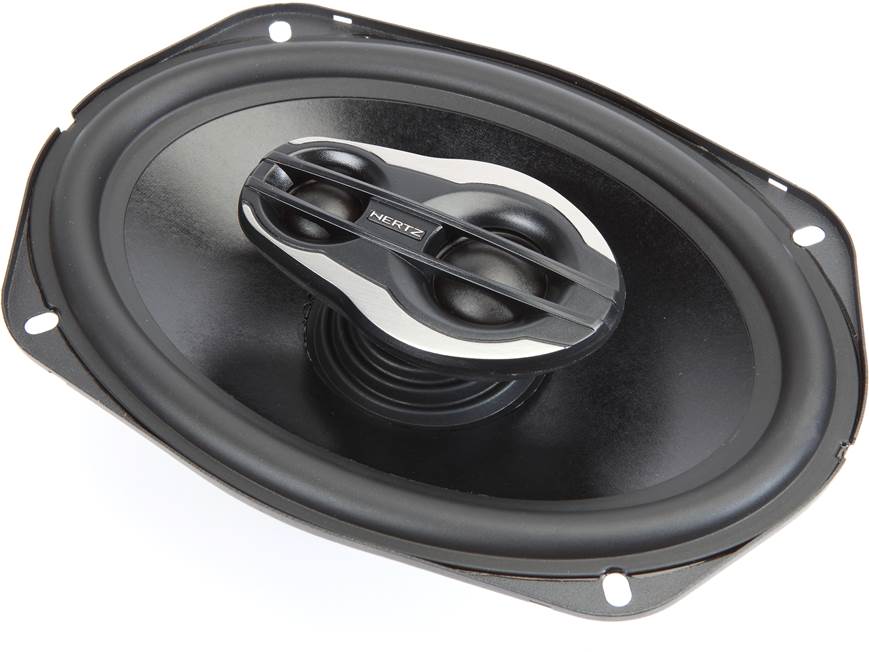

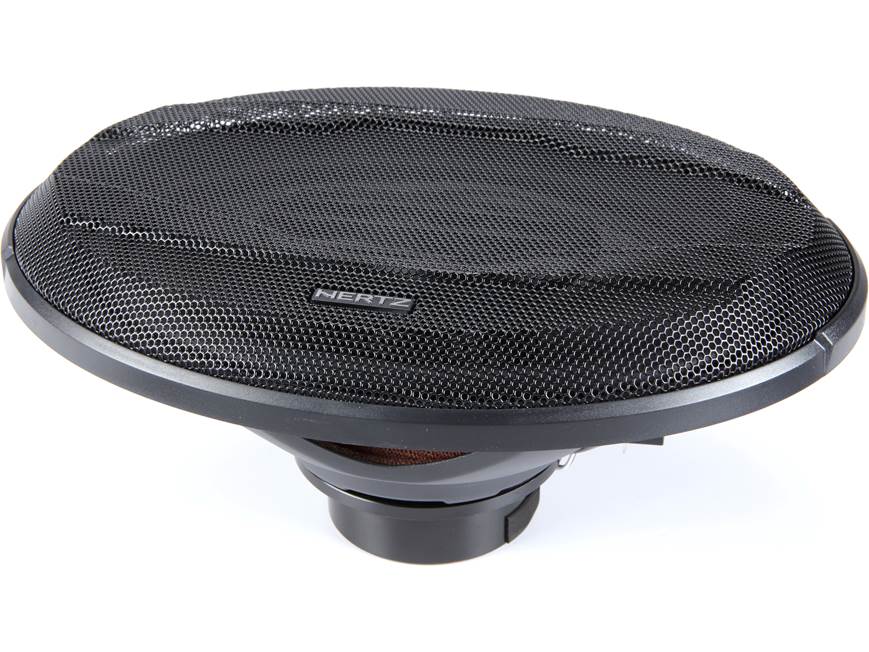

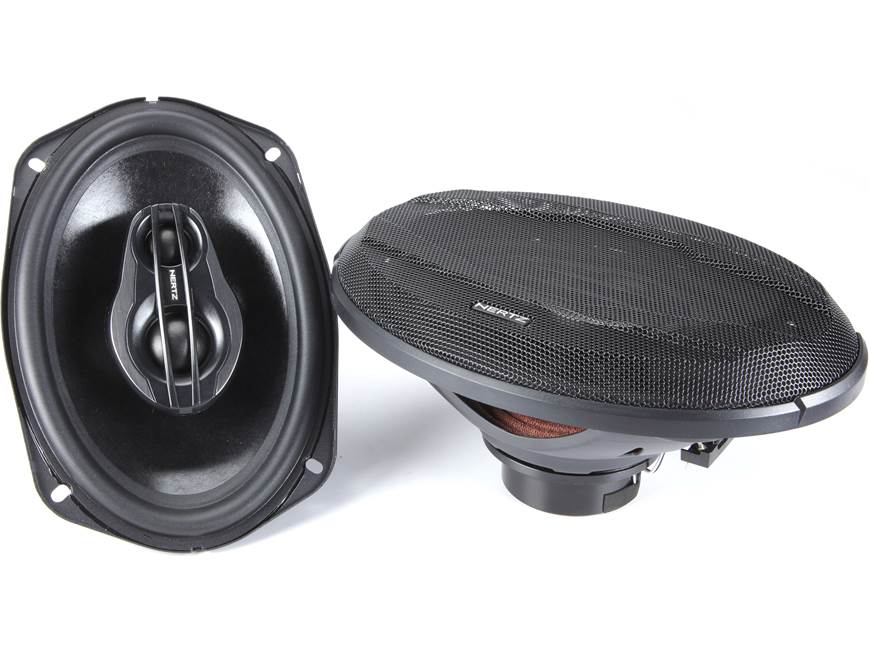

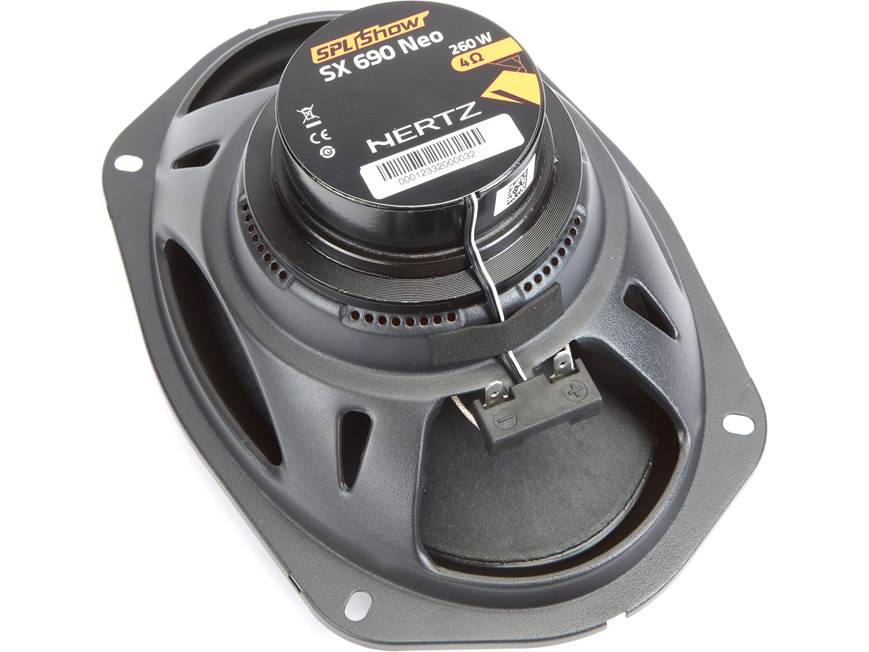

The Hertz SX 690 H NEO is a premium SPL Show Series 6x9-inch high-efficiency coaxial speaker engineered specifically for Harley-Davidson® bagger applications and extreme motorcycle audio systems. Designed for riders demanding massive highway-volume output with exceptional vocal clarity, the SX 690 H NEO combines a neodymium motor structure, horn-loaded mid/high section, weather-resistant construction, and high-SPL performance into a compact lightweight design optimized for modern Harley bag lids and fairings.

Main Features

  • 6x9-inch SPL coaxial motorcycle speakers
  • Designed specifically for Harley-Davidson® applications
  • High-efficiency SPL Show Series design
  • Neodymium N38 H motor structure
  • 1.4” dome tweeter
  • 1” dome super tweeter
  • Resettable solid-state tweeter protection
  • Water/humidity-resistant treated cone
  • UV-resistant cone treatment
  • Double-layer copper voice coil
  • Polyimide voice coil former
  • Lightweight compact basket design
  • Weather-resistant construction
  • Daisy-chain capable Faston terminals

Specs

Specification Details
Speaker Size 6x9"
Configuration 3-Way SPL Coaxial
RMS Power Handling 130W
Peak Power Handling 260W
Impedance 4Ω
Frequency Response 65Hz – 24kHz
Sensitivity 94 dB
Woofer Voice Coil 1.5"
Tweeter Voice Coil 1"
Magnet Type Neodymium N38 H
Cone Material Water-Resistant Pressed Paper
Weight Per Speaker 3.73 lbs
Approx. Shipping Weight ~10–14 lbs

Installation Notes

The SX 690 H NEO performs especially well with:

  • Harley bag lid systems
  • Tour-Pak® speaker lids
  • DSP tuning
  • High-output motorcycle amplifiers
  • Road Glide® and Street Glide® builds
