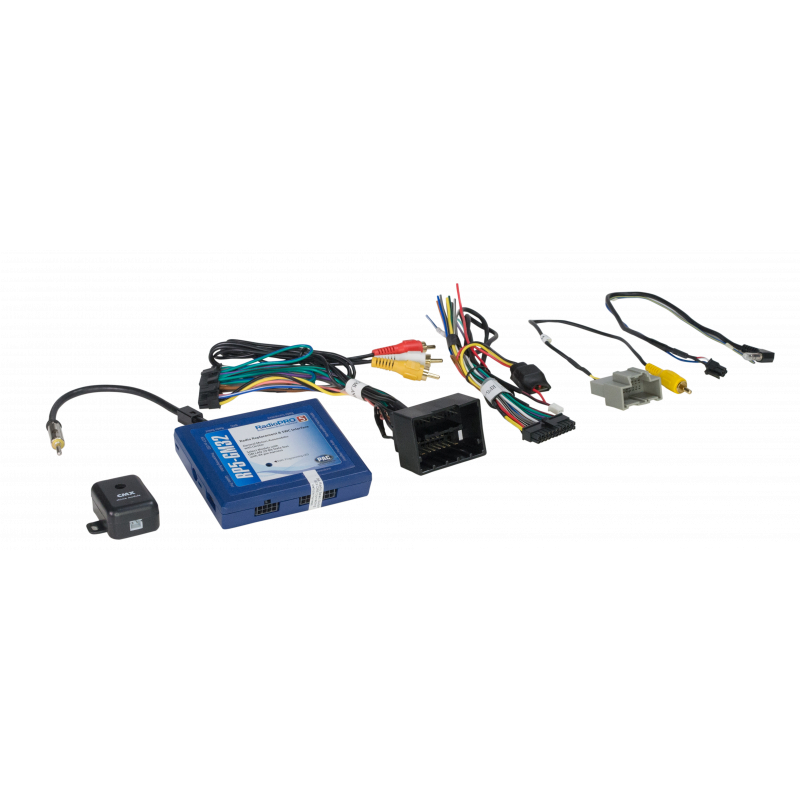

RadioPRO Radio Replacement Interface for Select General Motors Vehicles
RP5-GM32
Radio Replacement Interface with Built-In OnStar® Retention, Pre-Programmed Steering Wheel Control Retention and Navigation Outputs
An all-in-one radio replacement and SWC interface, the innovative RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation-based output signals, and other features that save time and money during installation.
- Retains steering wheel controls (pre-programmed)
- Retains OnStar® when the factory radio is replaced
- Retains factory Bluetooth (2009+ model vehicles)
- Retains rear seat audio controls
- Retains all warning chimes (chime module included)
- Retains back-up sensors/park assist
- Retains factory Bose audio systems
- Retains factory premium Bose audio (Y91 digital. does not support fading)
- Retains factory reverse camera
- Dual-zone function
- Chime volume adjustment (factory buttons)
- Rear seat audio and video (GMRVD2) required
- OnStar volume adjust from steering wheel controls
- OnStar volume adjustment
- Retained accessory power output (RAP)
- Reverse wire output
- VSS (Vehicle Speed Sense) output
- Illumination output
- Parking brake output
- Includes antenna adapter
- Retains lane departure warning system
- Retains OnStar Turn-by-Turn voice prompts
Patent # 8,014,540 & 8,184,825
APPLICATION GUIDE
| Year(s) | Make | Model | Trim Level | Additional Info |
|---|---|---|---|---|
| 2012-2013 | CHEVROLET | AVALANCHE | ALL TRIM LEVELS | — |
| 2012-2013 | CHEVROLET | SILVERADO | ALL TRIM LEVELS | — |
| 2014 | CHEVROLET | SILVERADO HD | ALL TRIM LEVELS | — |
| 2012-2014 | CHEVROLET | SUBURBAN | ALL TRIM LEVELS | — |
| 2012-2014 | CHEVROLET | TAHOE | ALL TRIM LEVELS | — |
| 2012-2013 | GMC | SIERRA | ALL TRIM LEVELS | — |
| 2012-2014 | GMC | SIERRA HD | ALL TRIM LEVELS | — |
| 2012-2014 | GMC | YUKON | ALL TRIM LEVELS | — |
| 2012-2014 | GMC | YUKON XL | ALL TRIM LEVELS | — |
Compatibility Notes
- Does not retain factory satellite radio
- For use in the following vehicles:
- All 2012-2013 GM trucks and SUVs equipped with factory navigation radios
- 2012+ 2500 & 3500 trucks equipped with factory navigation radios
- 2012-2013 GM trucks & SUVs equipped with factory non-navigation radios must use the RP5-GM31
- 2012+ 2500 & 3500 trucks equipped with factory non-navigation radios must use the RP5-GM31
- 2014+ Silverado & Sierra 1500 series trucks must use the RP5-GM51
- In Premium Amplified Systems there will be no fading capability of the aftermarket stereo
- Does not retain factory XM tuner. This is built into the factory radio and is removed when the radio is removed.
- Sony Bluetooth SWC commands are only supported with revision 1.6.6.14 or higher
