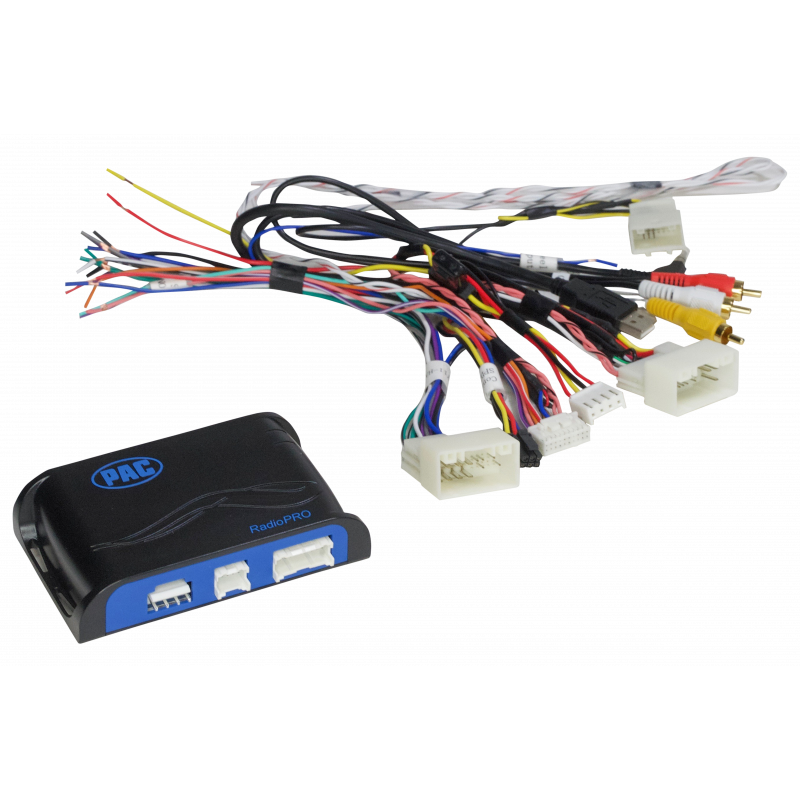

RadioPRO4 Radio Replacement Interface for Select Hyundai Vehicles

Select 2011-2015 Hyundai Vehicles

All in one radio replacement and SWC interface, the innovative RadioPRO4 comes pre-loaded with amplifier retention and SWC software, navigation-based output signals, and other features that save time and money during installation.

• Retains steering wheel controls (pre-programmed)
• Data controlled accessory and navigation outputs
• 10A accessory output
• Single programmable 12V output
• Easily configurable using a PC
• Retains factory reverse camera video (if equipped)
• Retains factory amplifier (RPA-SPDIF required)
• Retains USB input
• Retains AUX input (RCA to 3.5mm adapter may be required depending on aftermarket radio’s AUX input connection)
• Direct USB updatable

Patent # 8,014,540 & 8,184,825

APPLICATION GUIDE

• Vehicles equipped with factory navigation are not compatible
• Does not retain Blue Link
• Vehicles equipped with a factory amplifier also require the RPA-SPDIF
• The Hyundai Veloster requires the RP4.2-HY12.
• In the following vehicles the external screen will power up and display “Aux”. You will also lose the ability to set the factory clock: Genesis Coupe, 2010-2014 Hyundai Sonata
• In the following vehicles, the external screen will power up and display “Hyundai”. The climate control display will also be retained: Hyundai Azera
