4-Channel High-to-Low Converter

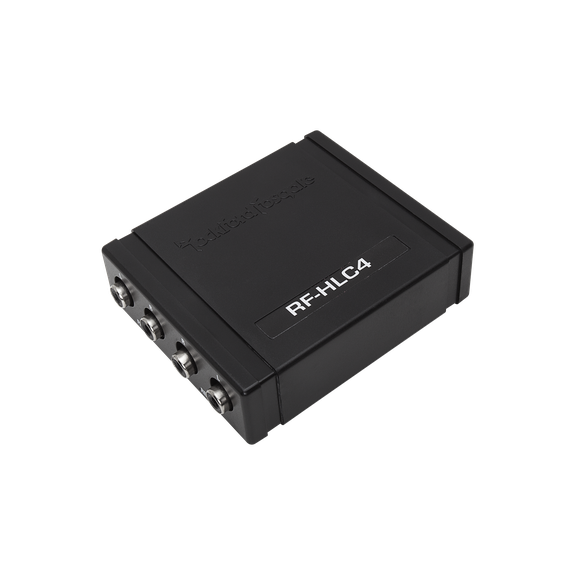

The RF-HLC4 is a 4-channel high-level to low-level signal converter designed for factory or aftermarket radios that do not have dedicated low-level RCA outputs. The adapter converts high-level signal from the radio's speaker line and transforms it into a safer low-level audio signal. This allows you to add a 4-channel amplifier to your system for higher power output and better sound quality.


FEATURES AT A GLANCE

  • 4-Channel
  • RCA Level Output
  • Speaker Level Input
  • 1 Year Warranty


SPECIFICATIONS:

Signal Input: Front Left & Right +/- leads
Rear Left & Right +/- leads
Front & Rear ground leads
Output Voltage Up to 3V (low-level)
Dimensions 1" x 3" x 3-1/2"
(2.54cm x 7.62cm x 8.89cm)
Mounting Behind dash
Configuration Line Output Converter Input Impedance -

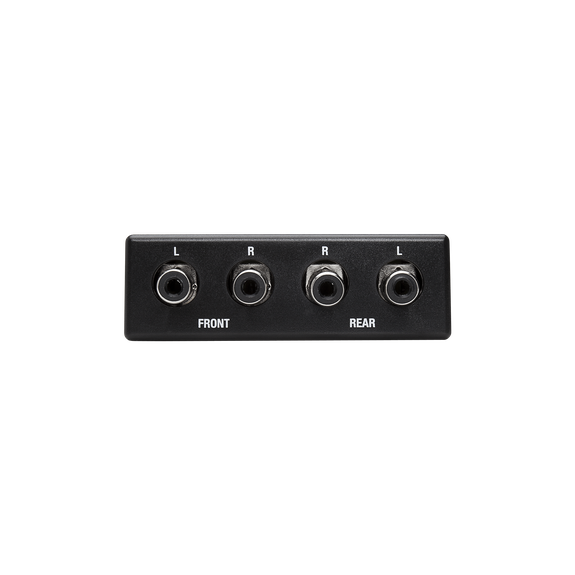

Signal Output Front Left & Right RCA jacks
Rear Left & Right RCA jacks
Output Impedance -
Input Voltage
Up to 10.5V (high-level) Processor Type Analog Processor
