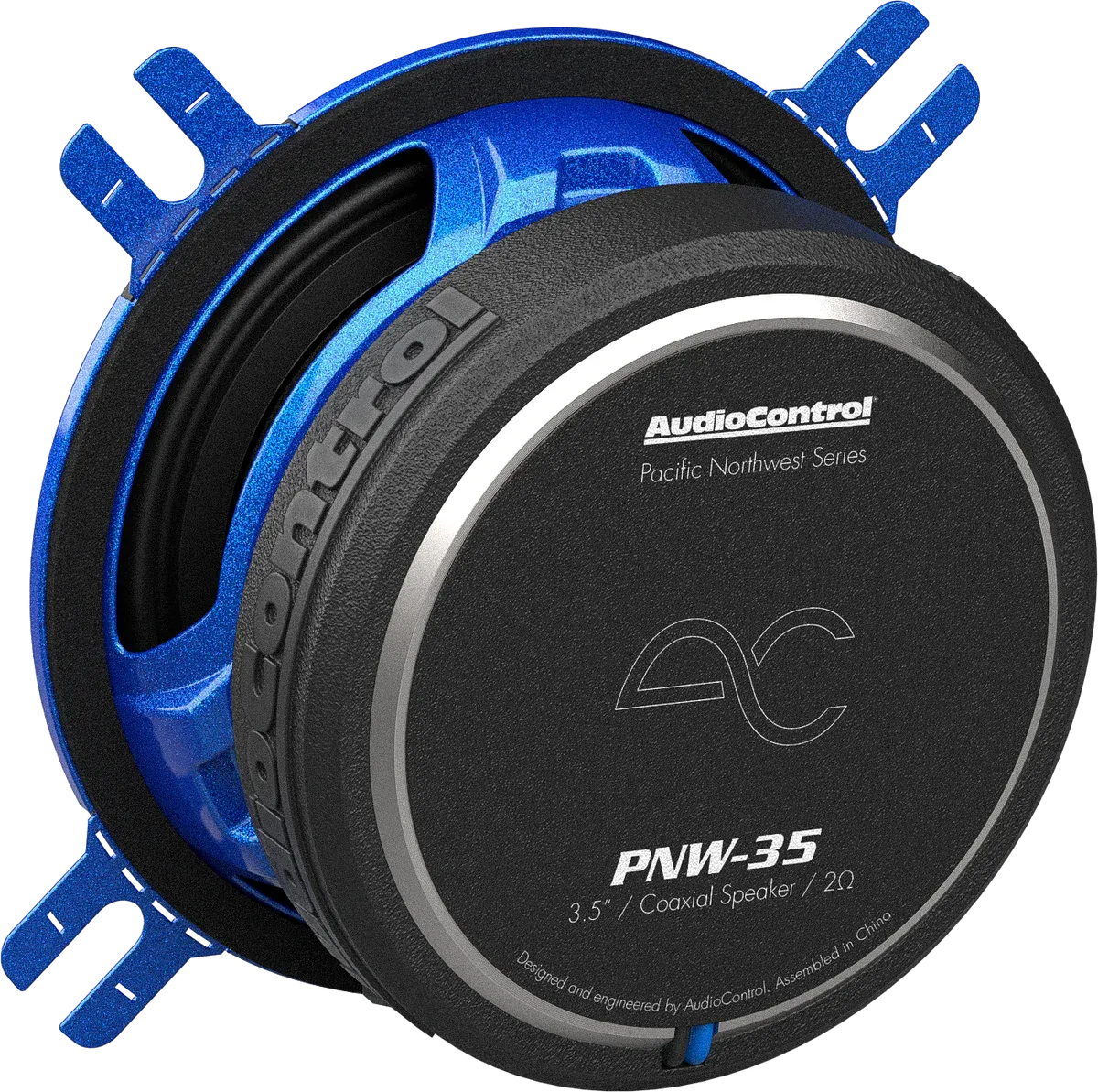

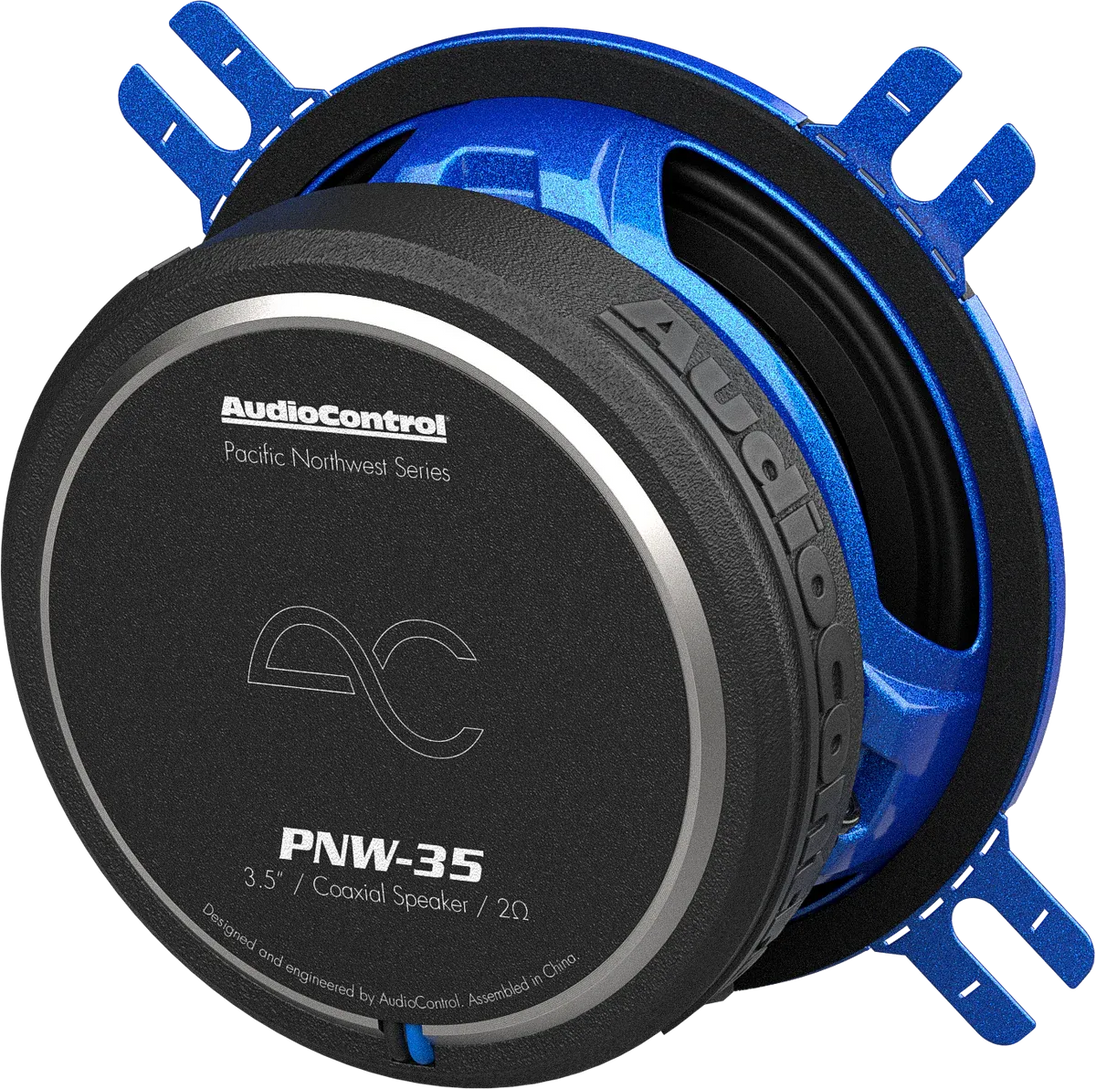

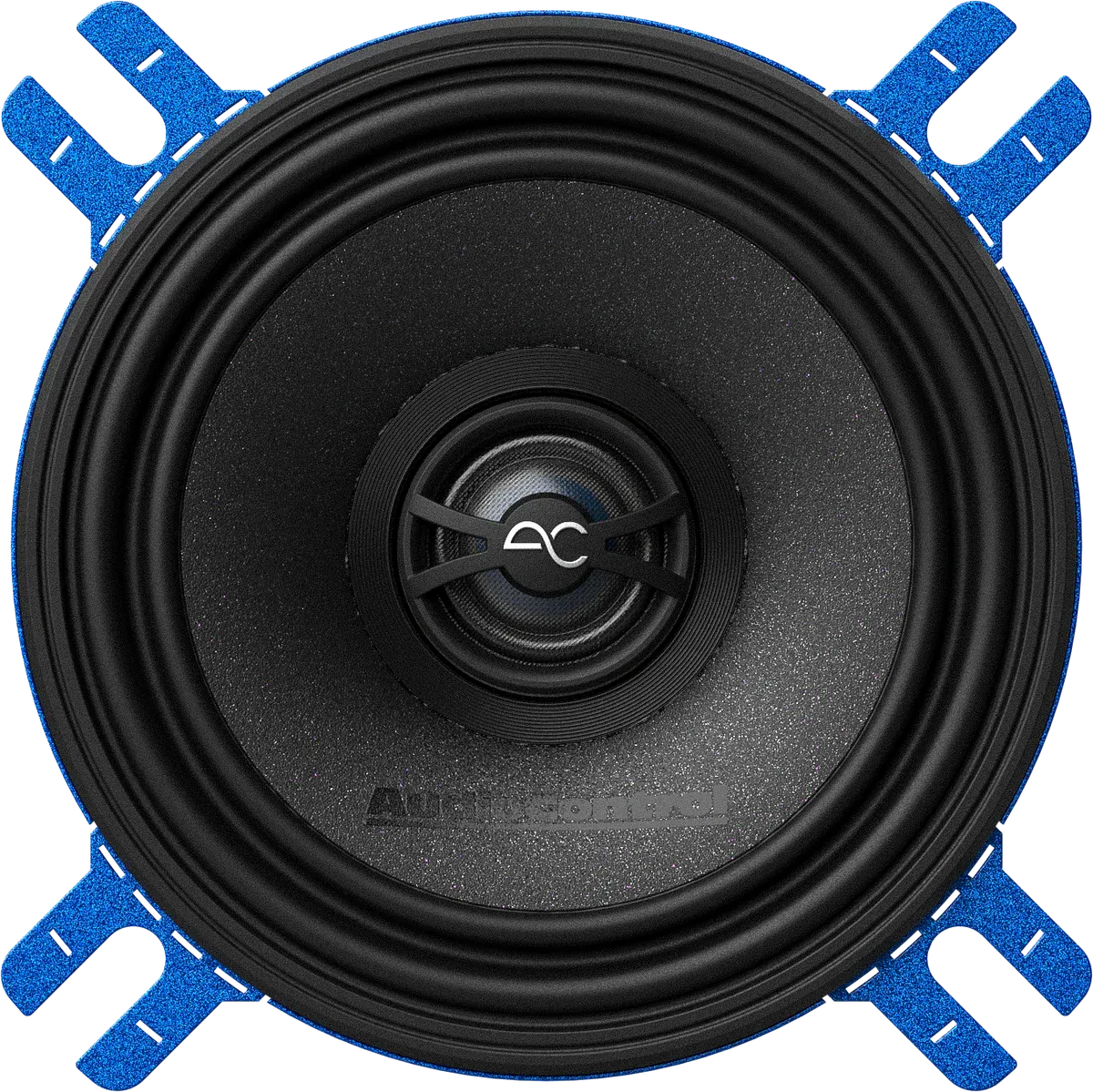

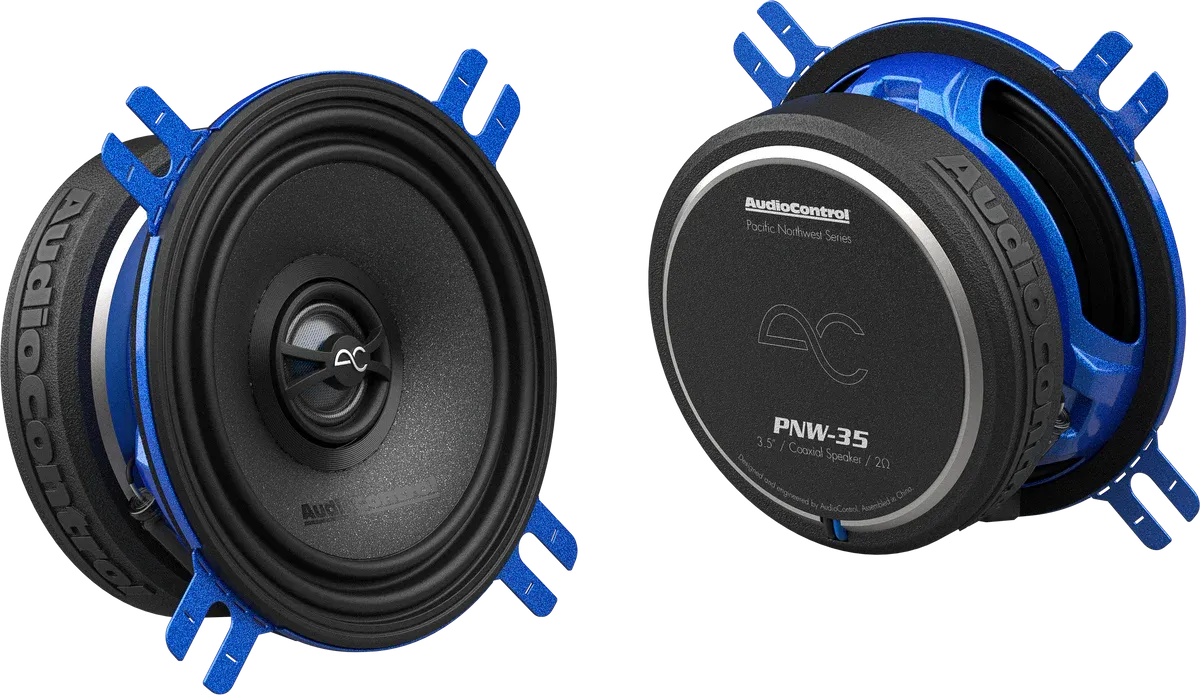

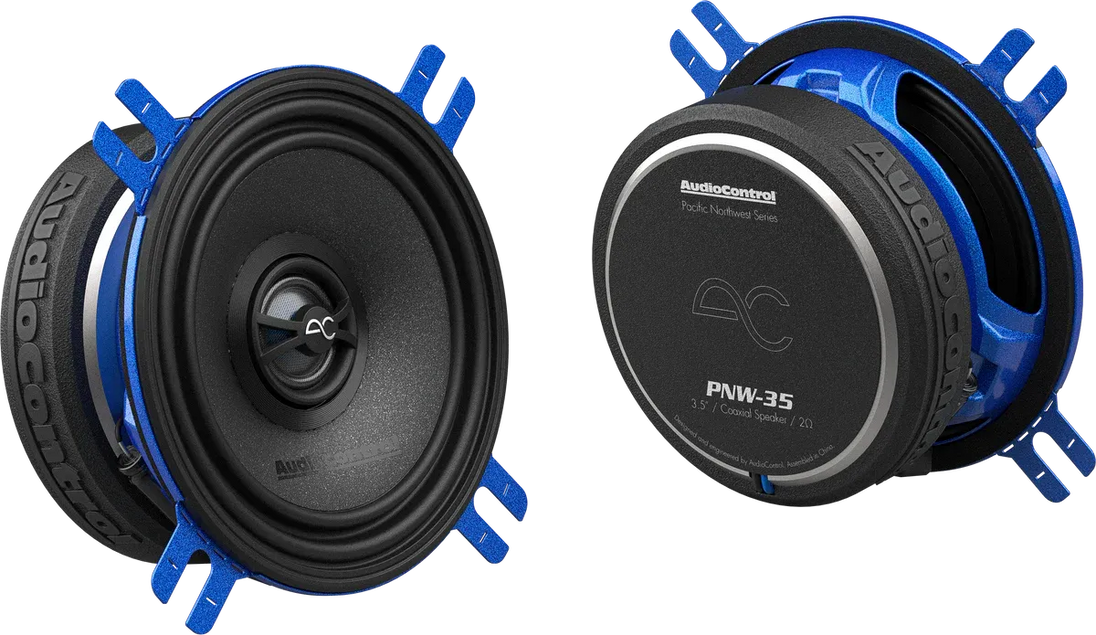

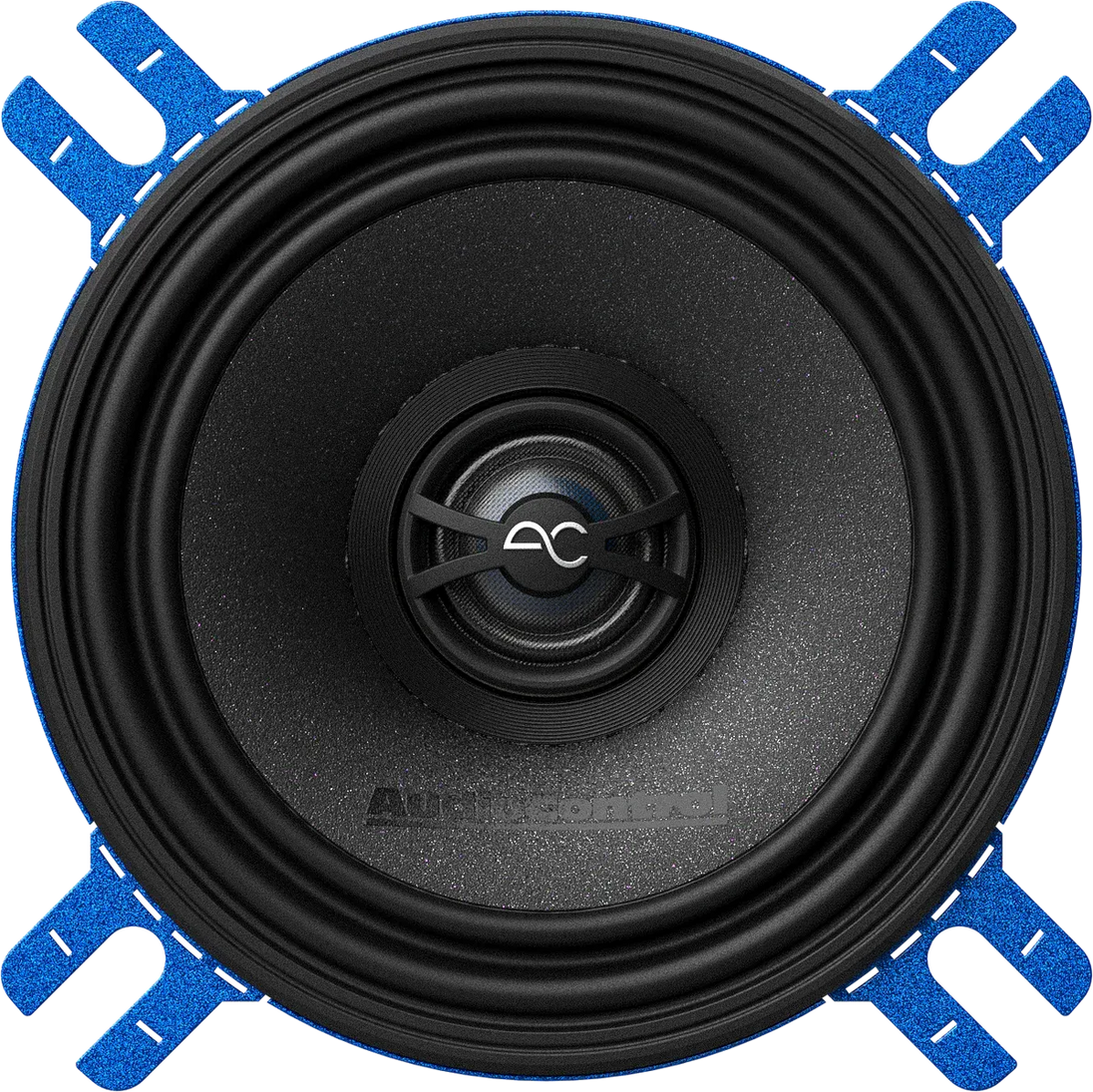

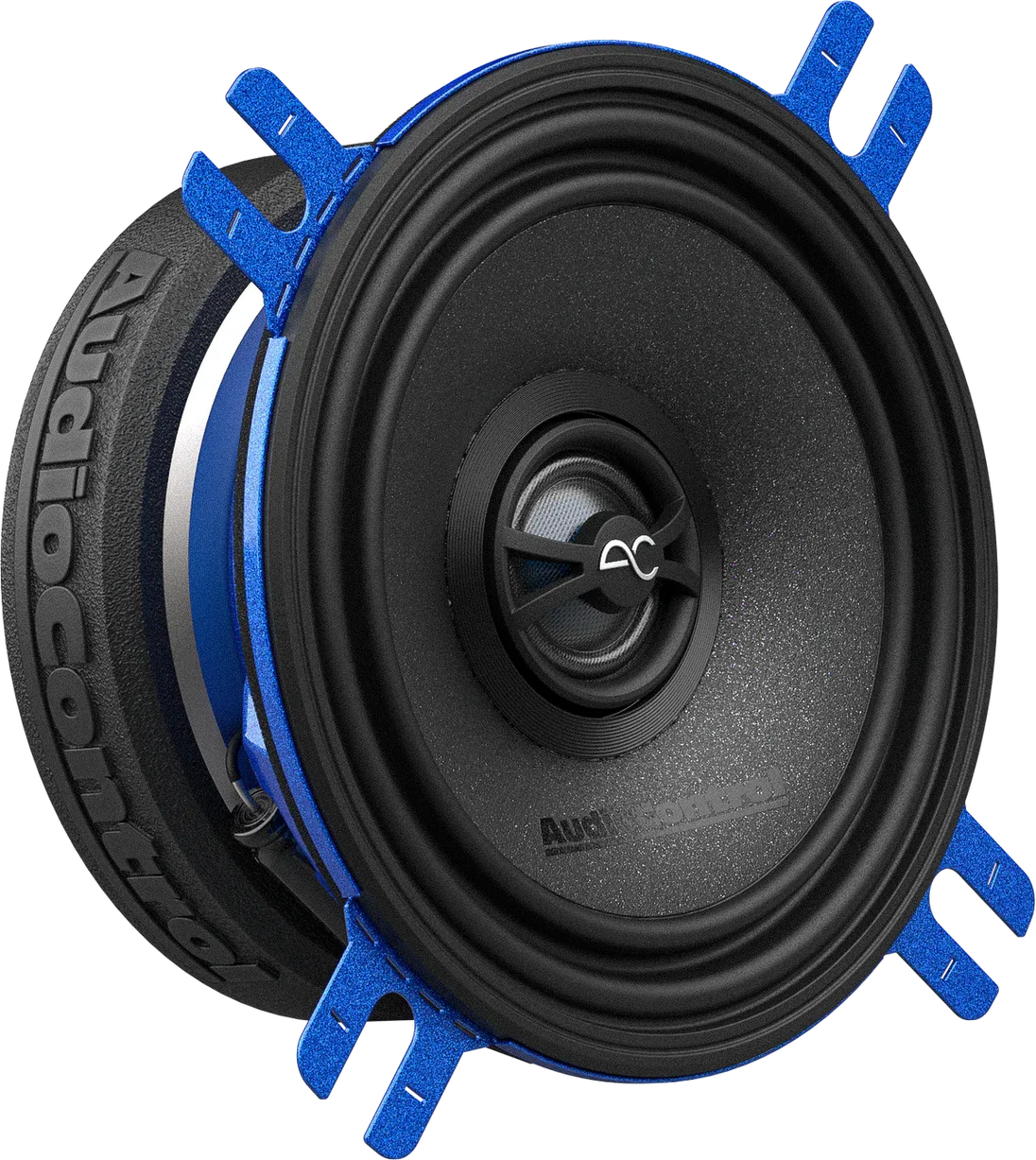

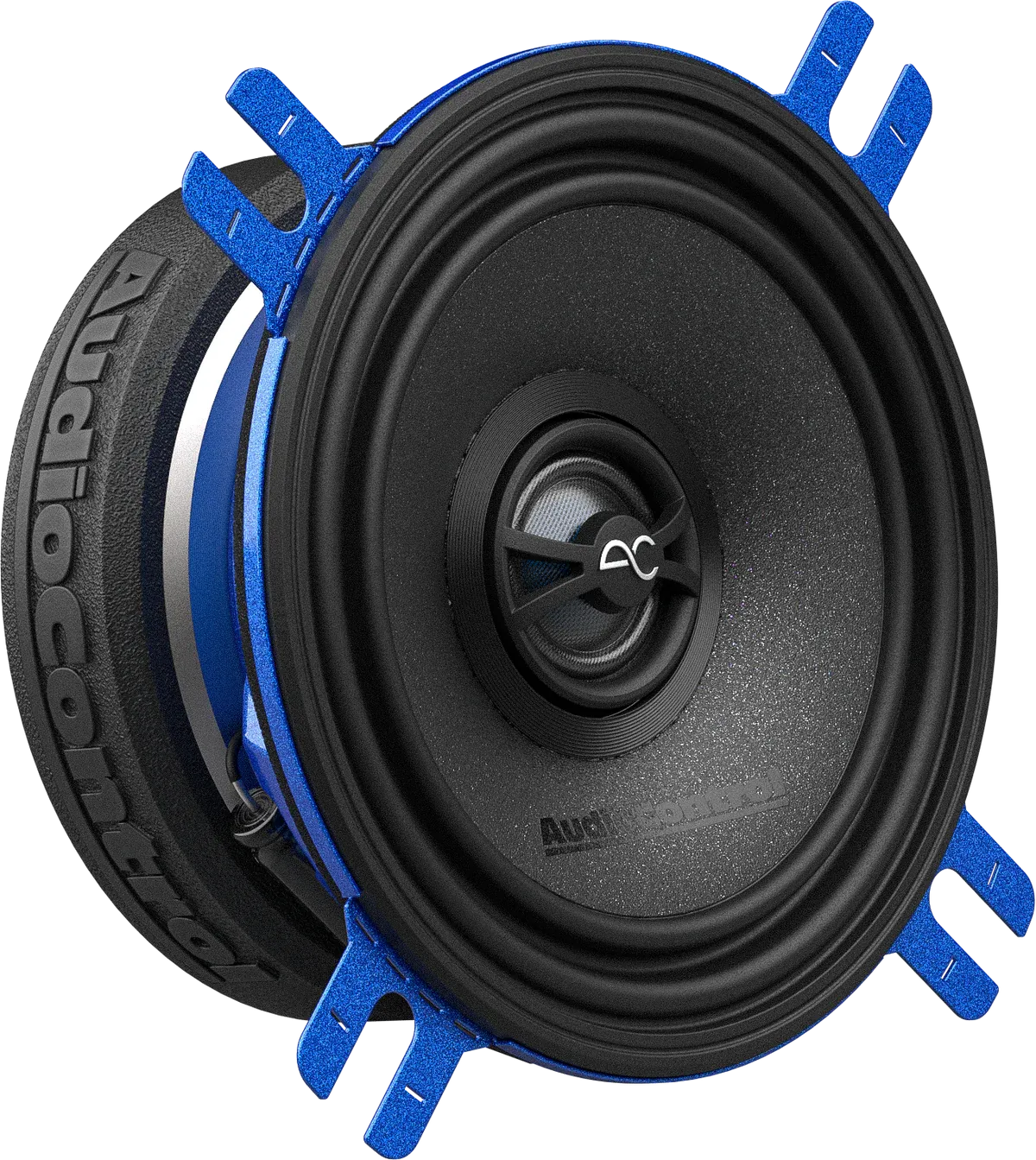

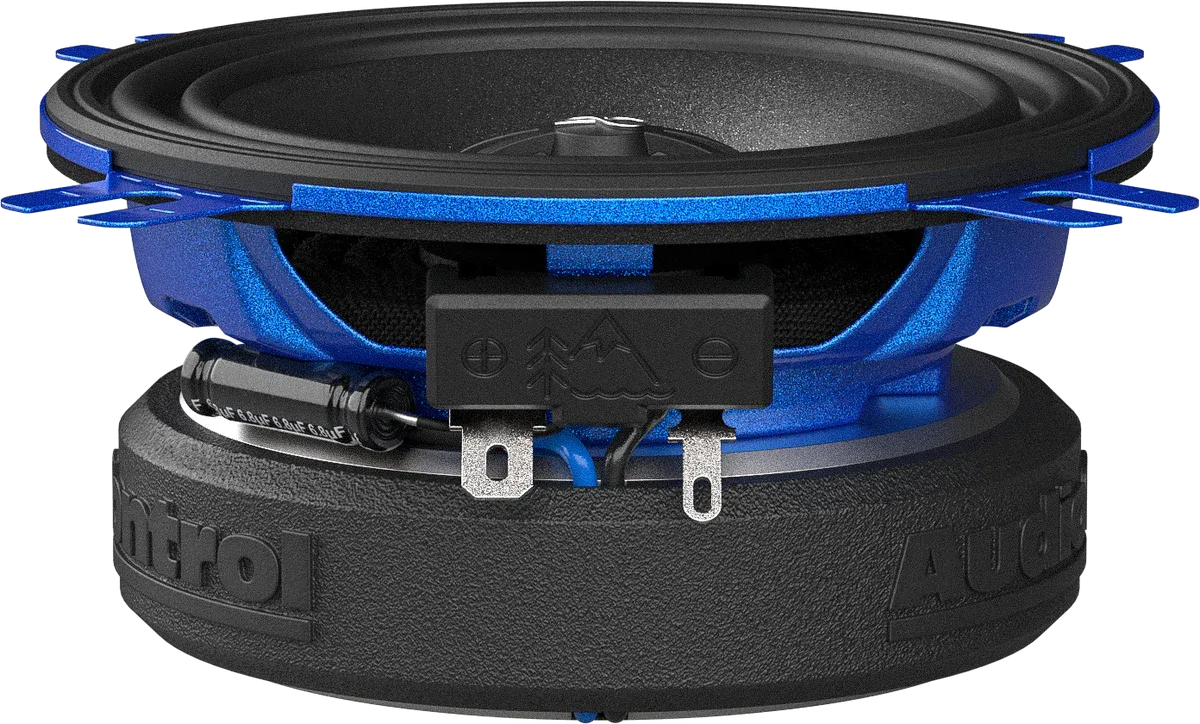

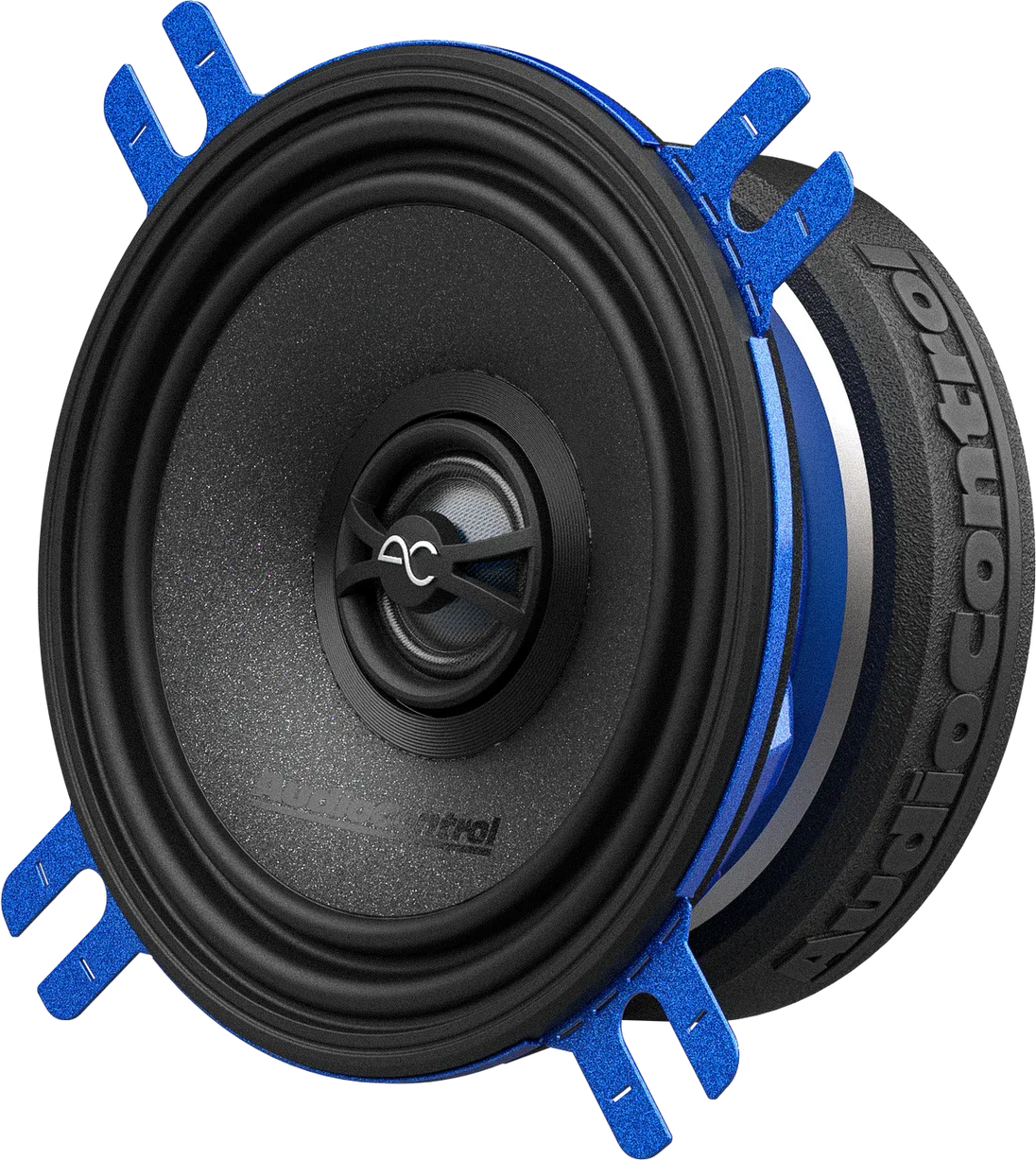

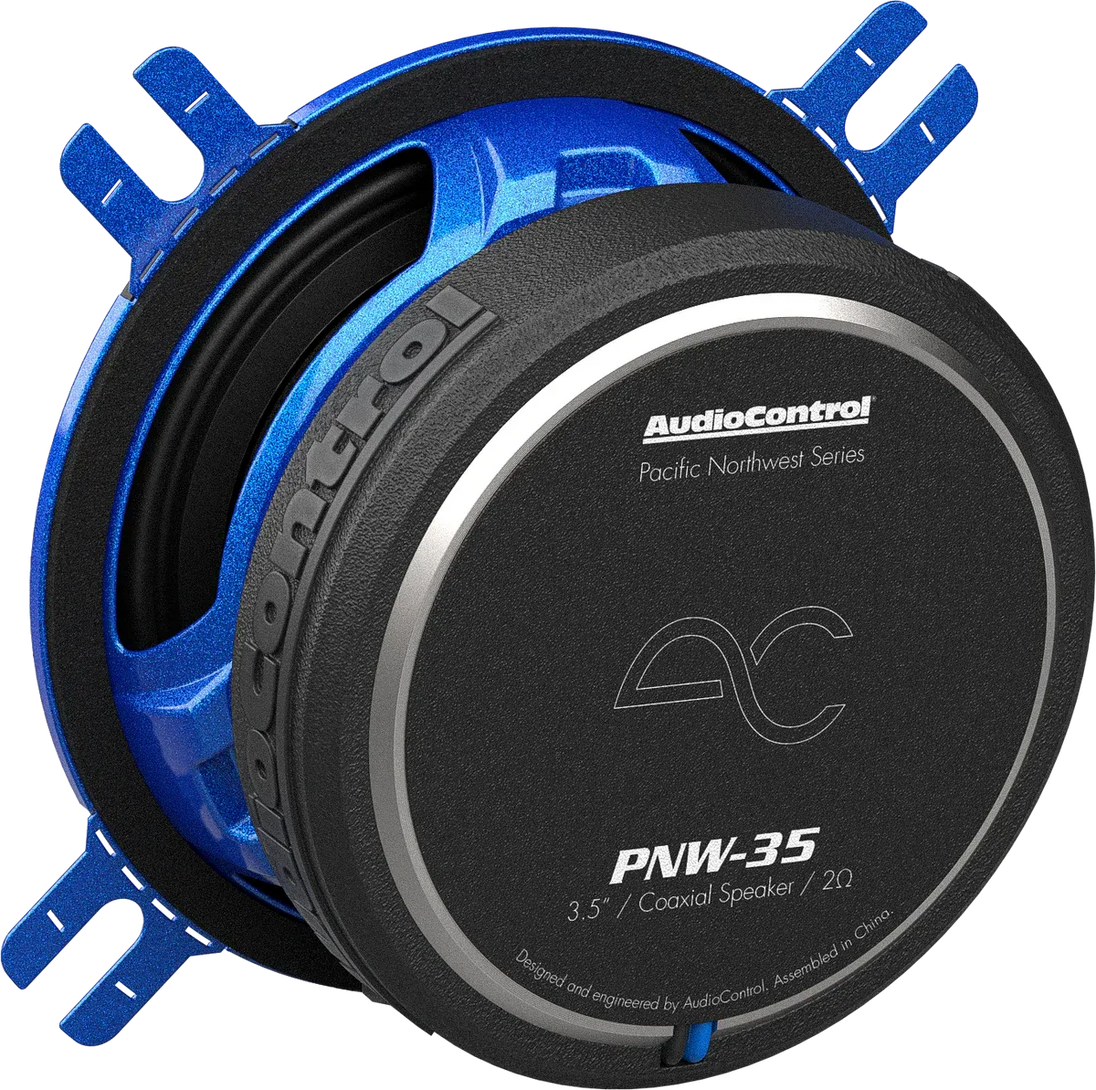

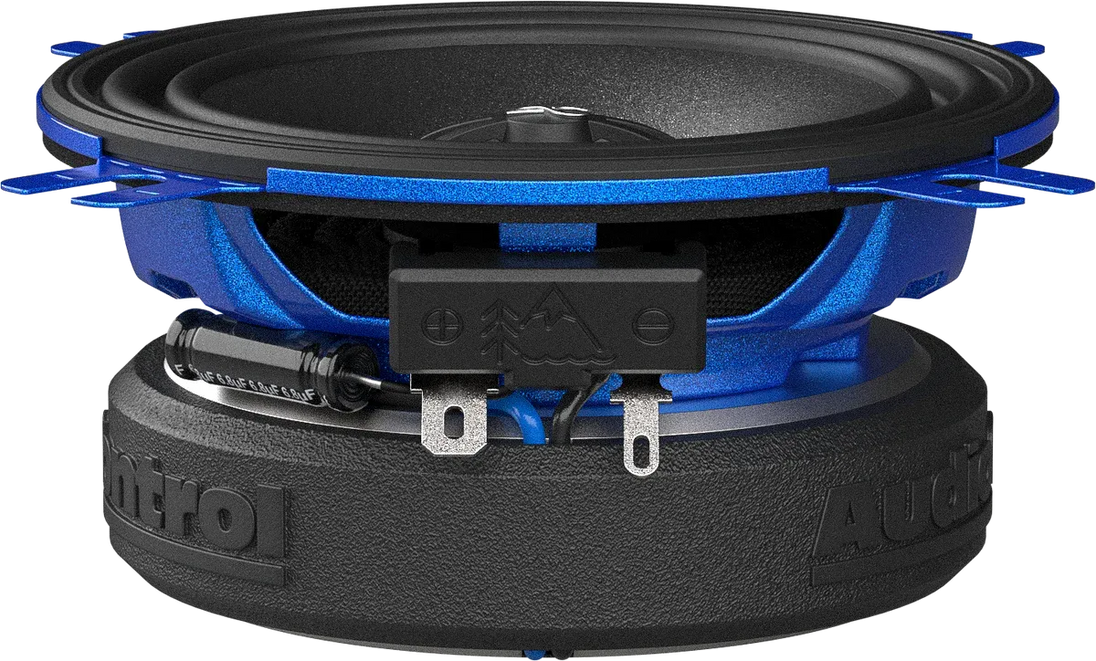

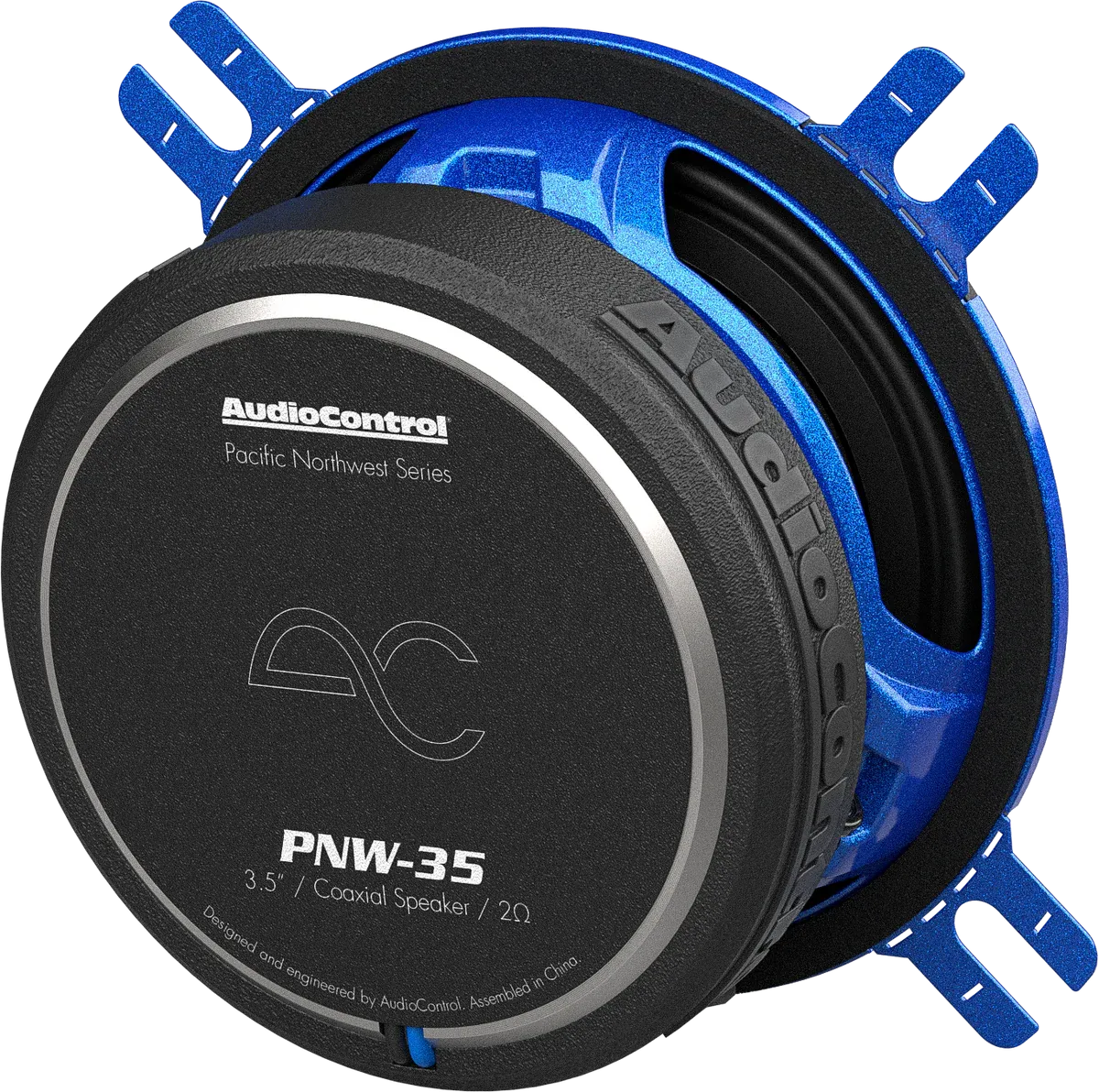

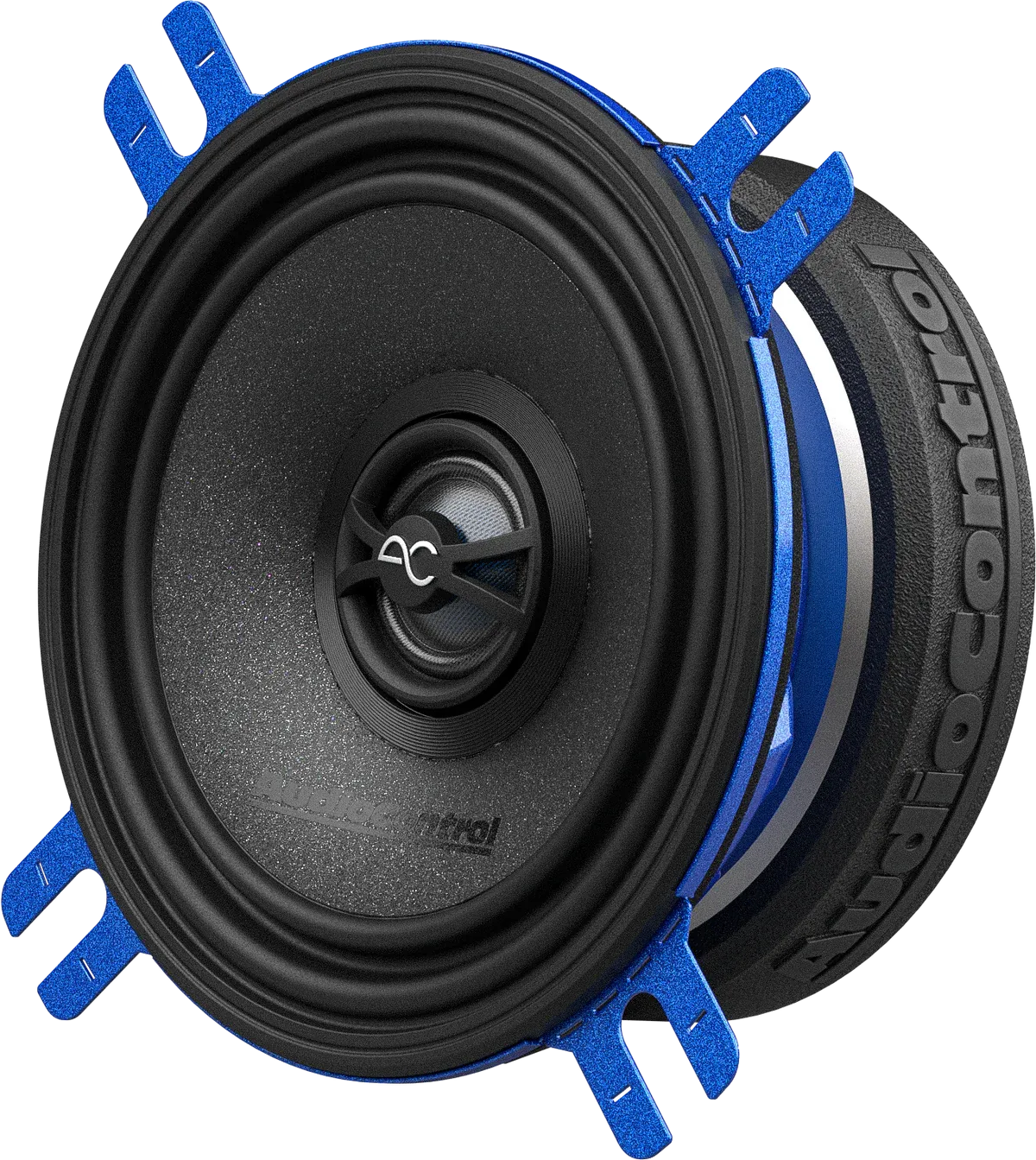

AudioControl PNW Series 3.5" 25 Watt (RMS) High-Fidelity Coaxial Speakers (Pair)

Features

  • Edge-enhanced steel frame for added structural strength.
  • Black anodized voice coil former for superior heat dissipation.
  • Linear double-roll surround for precision cone movement.
  • Complex FEA-designed high-efficiency motor.
  • Rigid poly mica-coated cone for optimized sound reproduction.
  • Rear dampened hybrid silk dome tweeter for extended frequency response.
  • Concentric point source design for a seamless transition from midrange to tweeter.
  • Sonic diffuser and radiant collar for better off-axis frequency response.
  • High-quality mounting hardware included.

Description

AudioControl is a trusted company with over 45 years of experience in engineering high-quality audio components. Their latest release, the PNW speakers, promise to take you on a wild auditory adventure like never before. Elevate your music experience with the 3.5” High-Fidelity Coaxial Speakers.

Crafted with an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement, the PNW line ensures optimized sound reproduction. The rigid poly mica-coated cone adds the cherry on top of the state-of-the-art design.

All necessary, high-quality mounting hardware is included with this speaker set. With the tweeter's point source design, both drivers align perfectly, resulting in better speaker alignment and impressive sound quality.

WHAT'S IN THE BOX

SPECIFICATIONS

Audio

Crossover Type Butterworth
DC Resistance (Re) 1.75 ohms
Filter Type HP
System Frequency (Fs) Response 90-20k Hz
XO Frequency 5900 Hz
Slope (Octave) -6 dB
Tweeter Voice Coil Diameter 13 mm
Midrange Voice Coil Diameter 25 mm


Dimensions

Overall Diameter (w/ metal bracket) 5.23 in/ 133 mm
Cut Out Diameter 3.60 in/ 91.5 mm
Mounting Depth 1.66 in/ 42.2 mm
Height (w/o Grille) 0.16 in / 4.1 mm
Height (w/ Grille) 0.64 in / 16.5 mm
Motor Diameter (w/ Cover) 2.96 in / 75.4 mm
Grille Overall Diameter 5.40 in / 137 mm
