Rockford Fosgate

PMX-ANT

SKU 210000000225
$89.99
$89.99

AM/FM/WB Amplified 12V Antenna

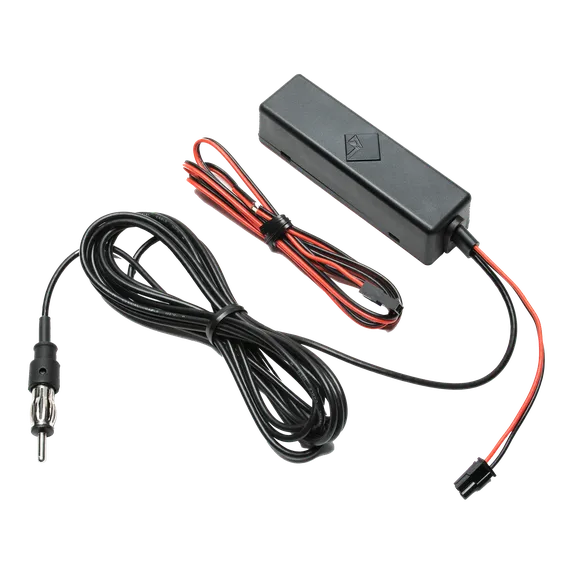

The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.

The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations. It's universal connectivity allows for use in Marine or UTV installation through a quick power connector.


FEATURES AT A GLANCE

  • Universal AM/FM/WB Antenna
  • 12VDC Powered for +20dB of Signal Gain
  • Omnidirectional
  • IP67 Water & Dust Rated
  • Double Sided Tape Mounting

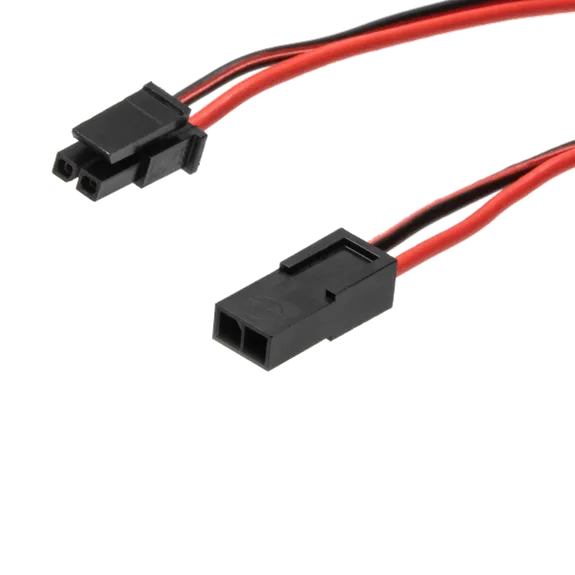

  • Quick Power Connect for Easy Installation


SPECIFICATIONS

Dimensions (HxWxD) 0.96 in. x 1.11 in. x 3.89 in
(24.5 mm x 28.2 mm x 98.7 mm)		 Operating Voltage 9 - 16 VDC
Idle Current < 20 mA
 Operating Temperature -30℉ to 70℉
(-34℃ to 21℃)
Signal Boost Range Unpowered: 0 dB
Powered: 20 dB		 Cable Length Power: 3.58 ft. (109 cm)

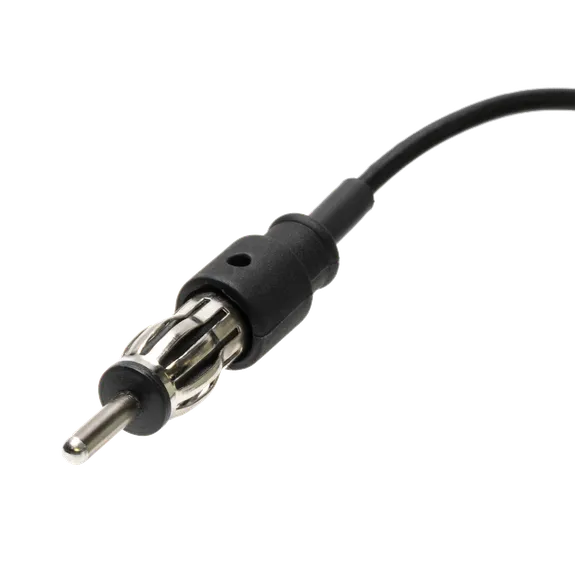

Antenna: 8.4 ft. (256 cm)
Shipping Weight 0.5 Lbs. (0.2 Kg.)
