Rockford Fosgate

PM500X1BD

SKU 210000000236
$549.99
$549.99

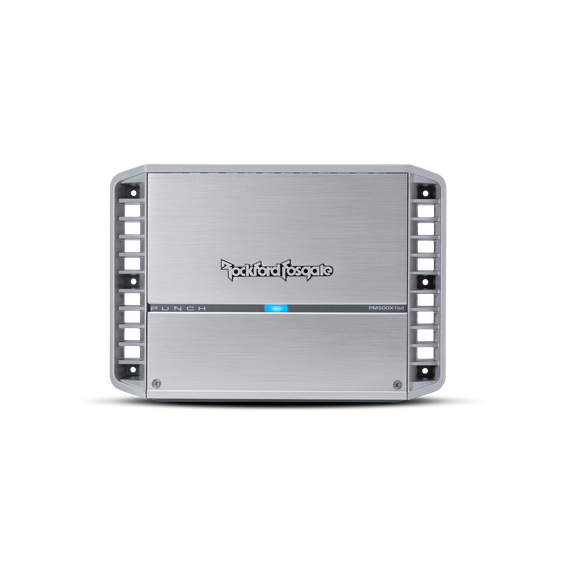

Punch Marine 500 Watt Class-bd Mono Amplifier

PM500X1bd

The PM500X1bd is a 500 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.

With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.


FEATURES AT A GLANCE

  • 12dB/octave Butterworth crossover
  • High level input capable with Auto Turn-On circuit
  • On-board Punch EQ with +18dB boost @ 45Hz
  • RCA pass-thru outputs
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Features C.L.E.A.N. Set-up

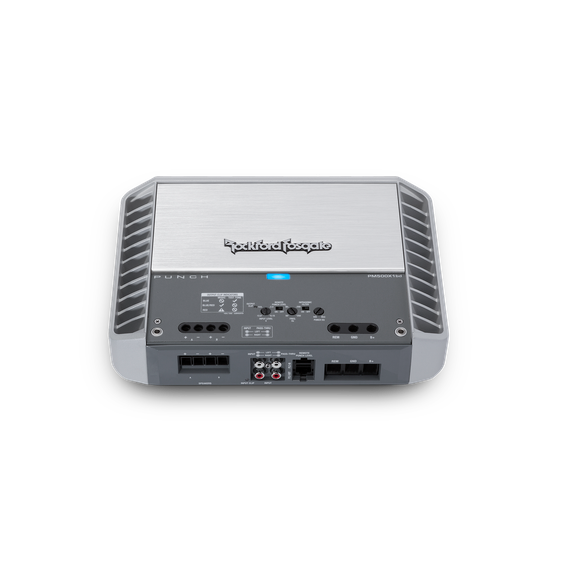

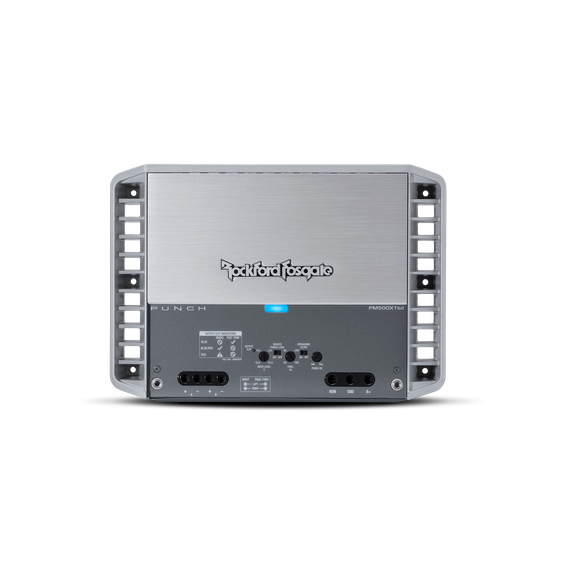

  • Stealth top mounted control panel
  • Over current protection
  • Infrasonic filter
  • Short circuit protection
  • Muted turn on
  • Marine grade stainless steel hardware
  • Cast aluminum heatsink
  • 2-Year Warranty
  • Marine grade two part epoxy coating on circuit boards


SPECIFICATIONS

Cta-2006 Compliant Remote Controls Optional Punch Level Control (PLC2) Ready
Number of Channels 1 Visual Indicators Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Total Power
(Sum of Rated Power)		 500 Watts Power Wire Gauge 4 AWG
Rated Power
(RMS Continuous Power)		 150 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm		 Power Input Connector Captive C-Clamp
Dynamic Power
(PVC/PowerCube®)		 224 Watts x 1 @ 4-Ohm
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm		 Speaker Wire Gauge 8 AWG to 18 AWG
Bridgeable No Speaker Output Connector Captive C-Clamp
Frequency Response 20Hz to 250Hz +/- 1.0dB Cooling Convection
Input Sensitivity 150 mV - 12 V Heatsink
Circuit Topology Class Class BD Operating Voltage 9 - 16 VDC
Efficiency (average) 86% @ 4-Ohm Recommended Fuse
(not included) 		80 A
Total Harmonic Distortion (THD+Noise)
 4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%		 Average Current Draw (13.8V Music) 35 A
Signal Input Hi/Low level: 1 RCA pair Max. Current Draw (13.8V Sinewave) 70 A
Signal Output Low level: 1 RCA pair Suggested Alternator 75 A
Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz Dimensions (H x W x D) 2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
Crossover Controls Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No		 Shipping Weight 10.8 Lbs. (4.89 Kg.)
