Rockford Fosgate

PBR300X1

SKU 210000000024
$279.99
$279.99

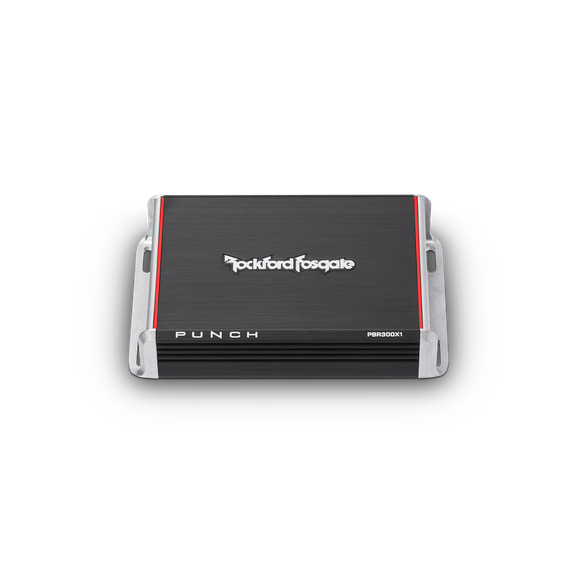

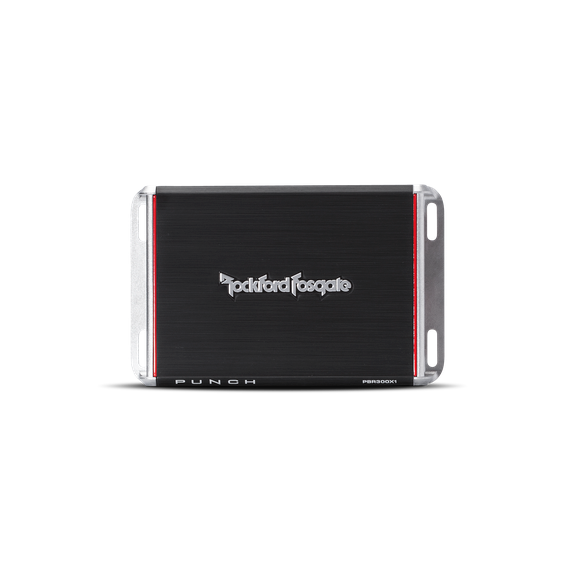

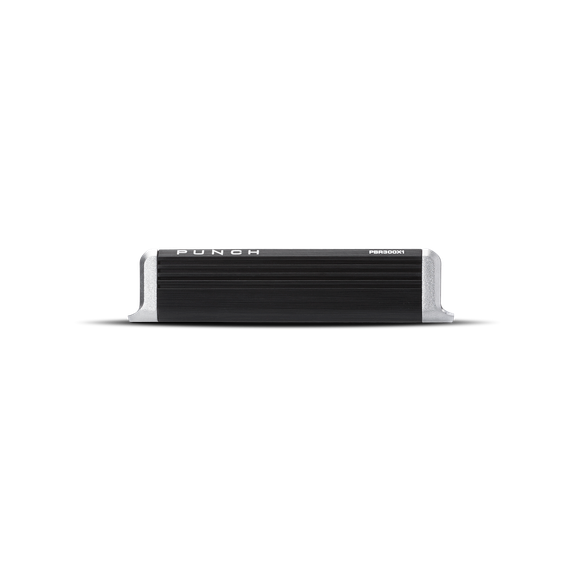

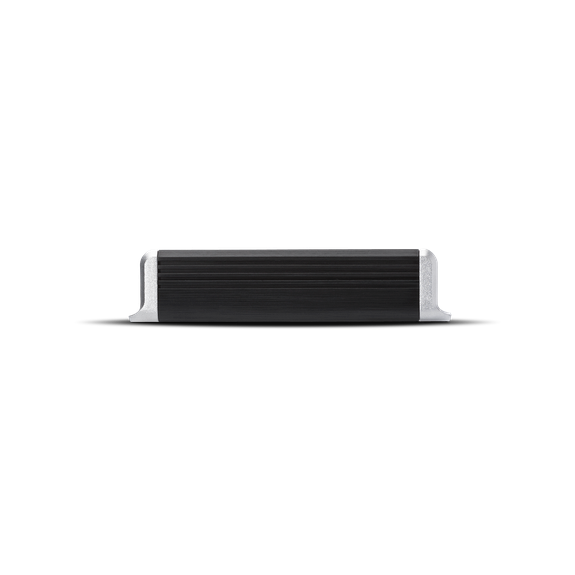

Punch 300 Watt Mono AmplifierPBR300X1

The Punch PBR300X1 is a 300 Watt mono car audio amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.

The PBR300X1 is a mono car audio amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system.

See our Element Readyâ„¢ amplifiers designed specifically for Motorsports and Motorcycle applications.


FEATURES AT A GLANCE

  • Ultra compact chassis
  • 12dB/octave Butterworth crossover
  • High level inputs
  • MOSFET output stage
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • 1 Year Warranty


SPECIFICATIONS

Cta-2006 Compliant Remote Controls Optional PEQ provides 0dB to +18dB @ 45Hz
Number of Channels 1 Visual Indicators Power/Protect, BRT (Boost)
Total Power
(Sum of Rated Power)		 300 Watts Power Wire Gauge 10 AWG
Rated Power
(RMS Continuous Power)		 75 Watts x 1 @ 4-Ohm
150 Watts x 1 @ 2-Ohm

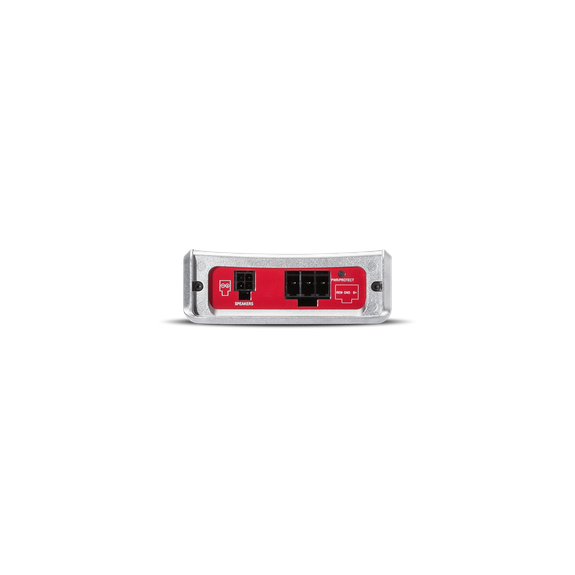

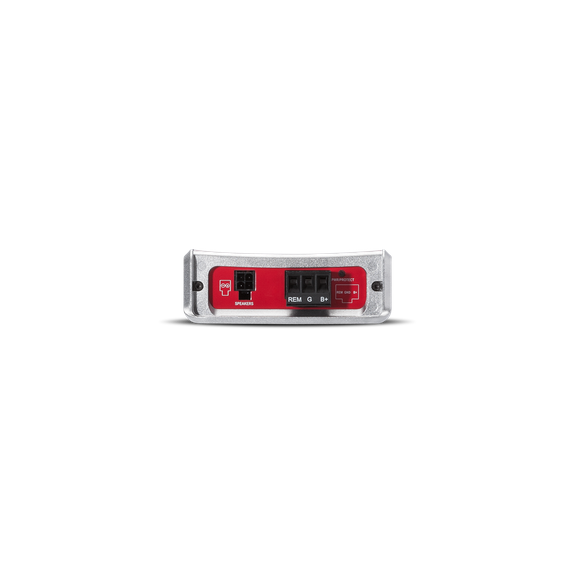

300 Watts x 1 @ 1-Ohm		 Power Input Connector Detachable Compression Terminal
Dynamic Power
(PVC/PowerCube®)		 96 Watts x 1 @ 4-Ohm
189 Watts x 1 @ 2-Ohm
326 Watts x 1 @ 1-Ohm		 Speaker Wire Gauge 16 AWG
Bridgeable No Speaker Output Connector 4-Pin Harness
Wiring Convenience:
2 Negative Terminals (-)
2 Positive Terminals (+)
Frequency Response 20Hz - 250Hz +/-3dB
 Cooling Convection
Input Sensitivity Low-Level: 150 mV - 4 V
High-Level: 400 mV - 11 V
 Heatsink
Circuit Topology Class Class BR Operating Voltage 9 - 16 VDC
Efficiency (average) 75% @ 4-Ohm
75% @ 2-Ohm
75% @ 1-Ohm		 Recommended Fuse
(not included) 		30 A
Total Harmonic Distortion (THD+Noise)
 4-Ohm: <1.0%
2-Ohm: <1.0%		 Average Current Draw (13.8V Music) 15 A

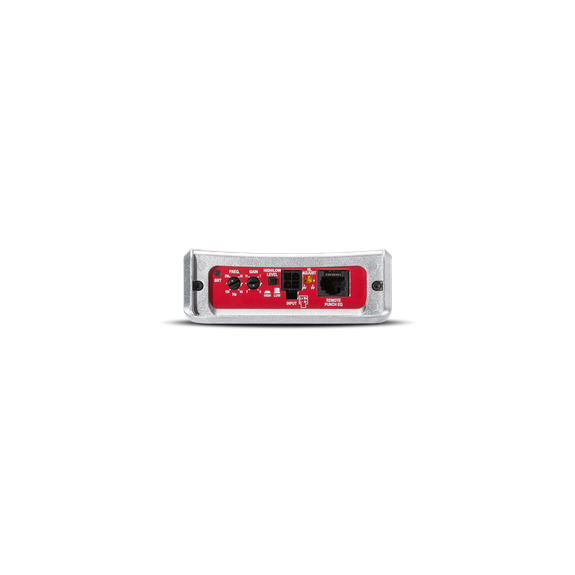

Signal Input High/Low Input Switch
High/Low Level Input: 4-Pin harness
Hi-Level Sensitivity: Variable DC offset sensitivity		 Max. Current Draw (13.8V Sinewave)


 30 A
Tone Controls External via Optional Punch EQ Suggested Alternator 75 A
Crossover Controls Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth Dimensions (H x W x D) 1.53 x 4.25 x 6.75 (in.)
3.90 x 10.8 x 17.2 (cm)
Shipping Weight 2.76 Lbs. (1.25 Kg.)
