Rockford Fosgate

P500X1BD

SKU 210000000032
$429.99
$429.99

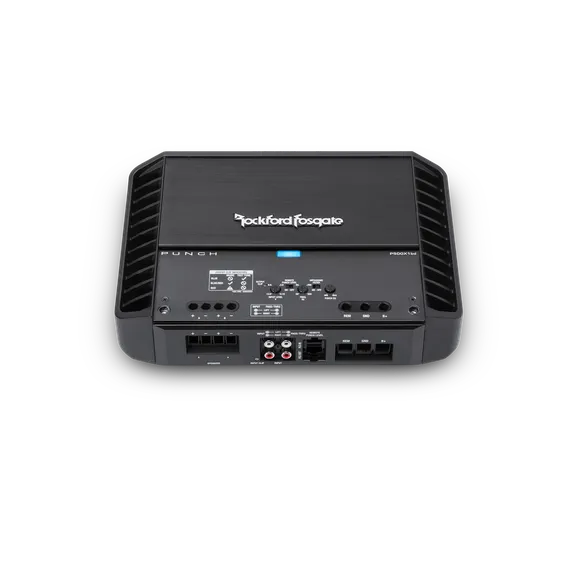

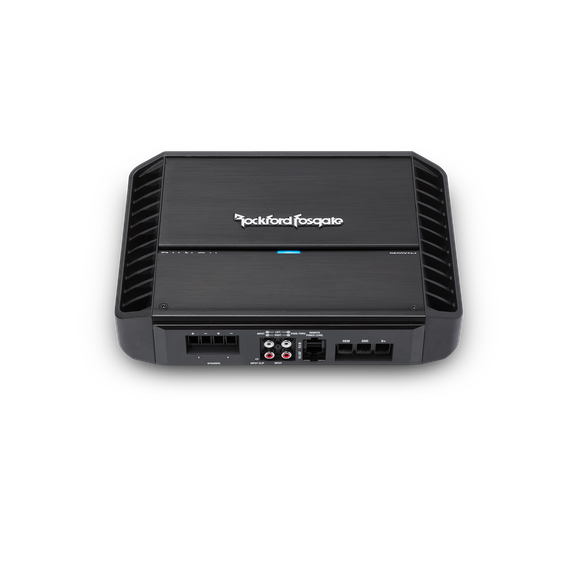

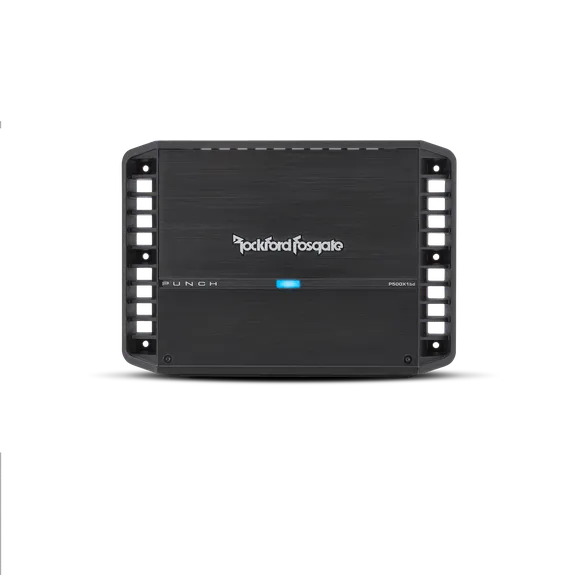

Punch 500 Watt Class-bd Mono AmplifierP500X1bd

The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.

With its super-efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.


FEATURES AT A GLANCE

  • 12dB/octave Butterworth crossover
  • High level input capable with Auto Turn-On circuit

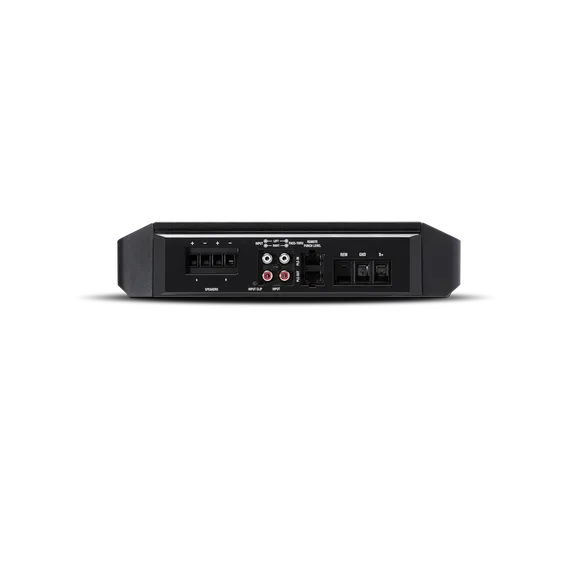

  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Over current protection
  • Short circuit protection
  • Cast aluminum heatsink

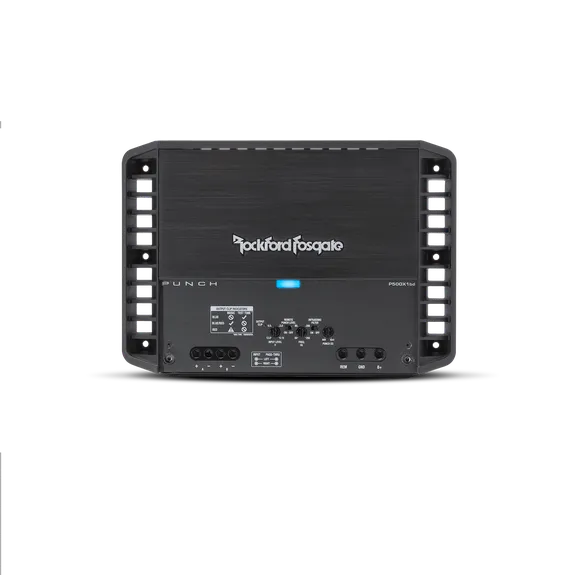

  • Stealth top mounted control panel
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Muted turn on
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Infrasonic filter
  • 1 Year Warranty


SPECIFICATIONS

Cta-2006 Compliant
Remote Controls
 Optional Punch Level Control (PLC2) Ready
Number of Channels
1
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Total Power
(Sum of Rated Power)
500 Watts
PC5:D17ower Wire Gauge
4 AWG
Rated Power
(RMS Continuous Power)
150 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
Power Input Connector
Captive C-Clamp
Dynamic Power
(PVC/PowerCube®)
224 Watts x 1 @ 4-Ohm
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
Speaker Wire Gauge
8 AWG to 18 AWG
Bridgeable
No
Speaker Output Connector
Captive C-Clamp
Frequency Response
 20Hz to 250Hz +/- 1.0dB
Cooling
Convection
Input Sensitivity
150 mV - 12 V
Heatsink
Circuit Topology Class
Class-BD
Operating Voltage
9 - 16 VDC
Efficiency (average)
 86% @ 4-Ohm
Recommended Fuse (not included)
80 A
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Average Current Draw (13.8V Music)
35 A
Signal Input
Hi/Low level: 1 RCA pair
Max. Current Draw (13.8V Sinewave)
60 A
Signal Output
Low level: 1 RCA pair
Suggested Alternator
 75 A
Tone Controls
Punch EQ2 Bass: 0dB to +18dB @ 45Hz
Included In The Box
Crossover Controls
Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
Dimensions (H x W x D)
2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
Shipping Weight
 10.8 Lbs. (4.89 Kg.)
