ROCKFORD FOSGATE P500-12P

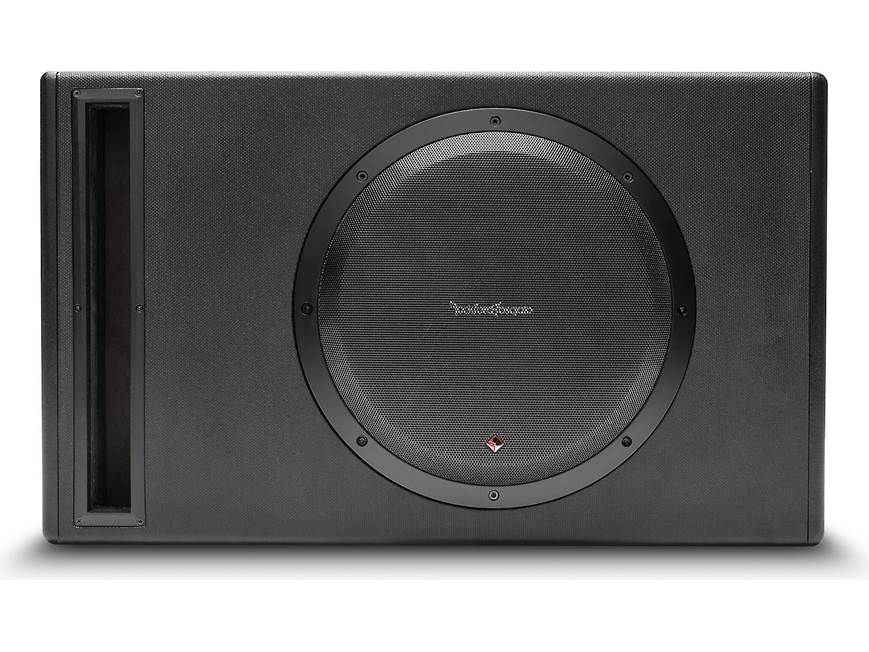

The Punch P500-12P is an "all in one" solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12" high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

Frequency Response
20 Hz to 200 Hz
Woofer Quantity
1
Woofer Size
12"
Woofer Series
Proprietary
Nominal Impedance
Power Handling
(Watts RMS)
500 Watts RMS
Enclosure Type
Ported
Enclosure Material
5/8" MDF (Medium Density Fiberboard)
Speaker Connector
CEA-2006 Compliant
CEA-2006 Guidelines
Integrated Amplifier
500 Watts RMS
Crossover Controls
Variable 50 Hz to 200 Hz
12dB/Octave Butterworth
Tone Controls
Bass Boost
0 dB to +12 dB
Phase Control
0° to 180°
Remote Control
Punch Level Control (Included)
Replacement Part: 1510-57864-01
Auto Turn-On Selector
Remote Trigger
DC Offset Sense
Audio Sense
Input Switch
High-Level (Speaker Line)
Low-Level (RCA)
Signal Input
Low/High-Level: 1 RCA Pair (L/R Summed)
Replacement Part: 1560-57865-01
Input Sensitivity
Low-Level: 150 mV to 6 V
High-Level: 300 mV to 12 V
Input Impedance
20k Ohms
Power Input Connector
Quick Disconnect
Replacement Part: 1040-57860-01
Power Wire Gauge
B+/GND: 8 AWG
REM: 18 AWG
Circuit Topology Class
Class-D
Heatsink Type
Extruded Aluminum
Cooling
Convection
Visual Indicators
Power/Protect LED
Fuses
30 Amp (2 x 15 Amp ATO Fuse)

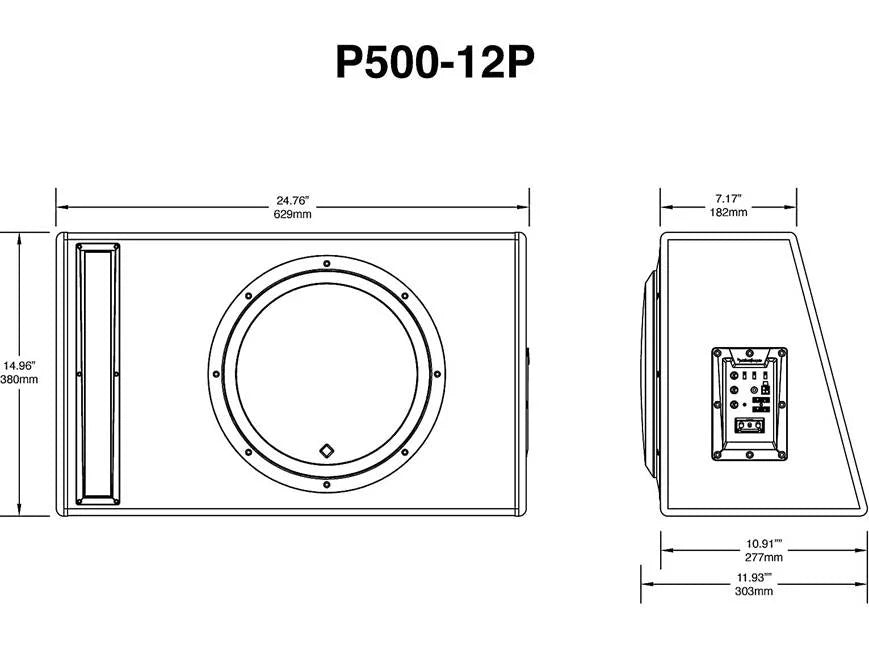

Dimensions
Box H x W x D
Wedge H x W x D1 x D2
15.00” x 24.76” x 10.91 x 7.71”
(38.1 cm x 62.9 cm x 27.7 cm x 189.2 cm)
