ROCKFORD FOSGATE P300-12T

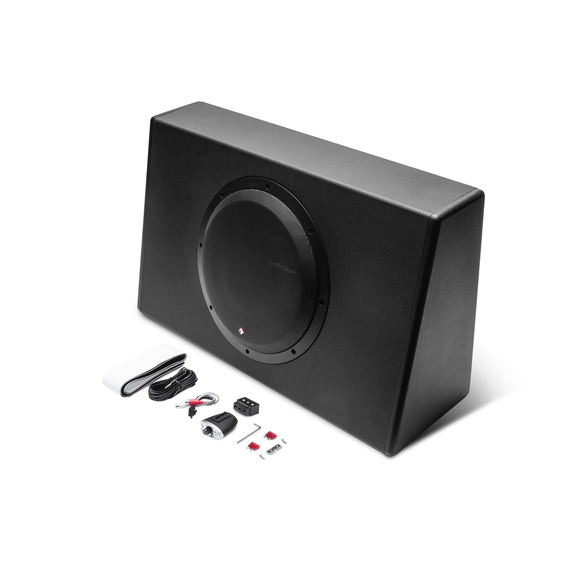

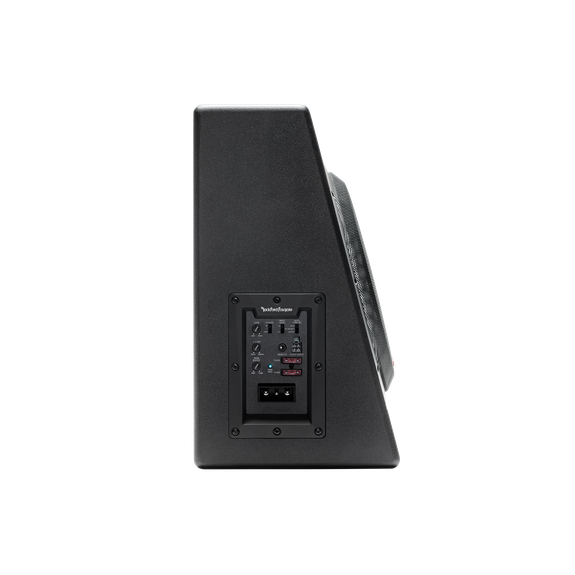

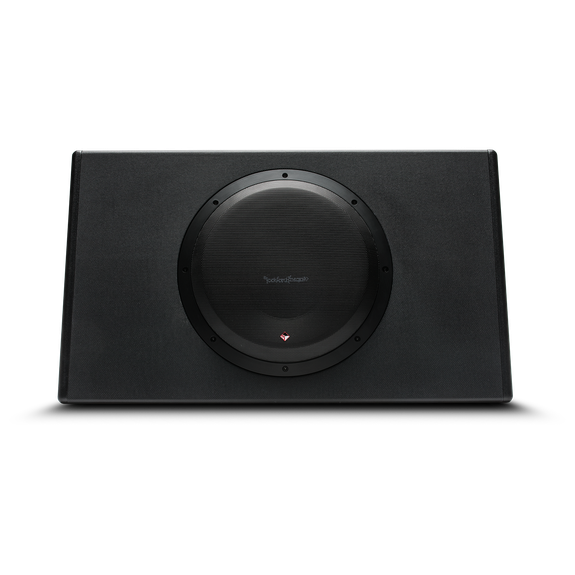

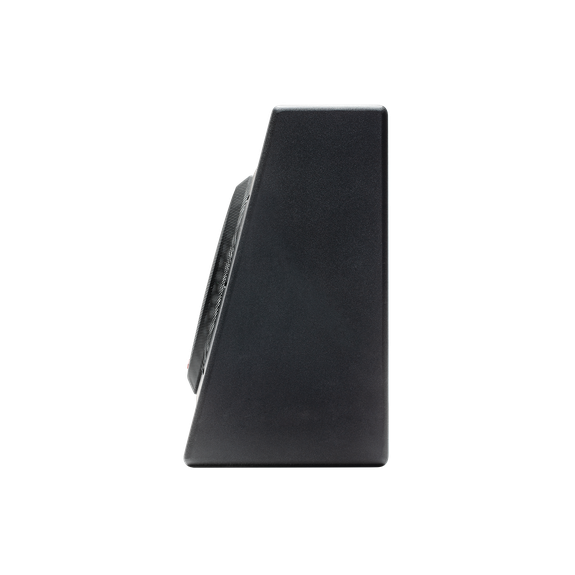

The Punch P300-12T is an "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 12" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

Frequency Response
20 Hz to 200 Hz
Woofer Quantity
1
Woofer Size
12"
Woofer Series
Proprietary
Nominal Impedance
Power Handling
(Watts RMS)
300 Watts RMS
Enclosure Type
Sealed
Enclosure Material
5/8" MDF (Medium Density Fiberboard)
Speaker Connector
Integrated Amplifier
300 Watts RMS
Crossover Controls
Variable 50 Hz to 200 Hz
12dB/Octave Butterworth
Tone Controls
Bass Boost
0 dB to +12 dB
Phase Control
0° to 180°
Remote Control
Punch Level Control (Included)
Replacement Part: 1510-57864-01
Auto Turn-On Selector
Remote Trigger
DC Offset Sense
Audio Sense
Input Switch
High-Level (Speaker Line)
Low-Level (RCA)
Signal Input
Low/High-Level: 1 RCA Pair (L/R Summed)
Replacement Part: 1560-57865-01
Input Sensitivity
Low-Level: 150 mV to 6 V
High-Level: 300 mV to 12 V
Input Impedance
20k Ohms
Power Input Connector
Quick Disconnect
Power Wire Gauge
B+/GND: 8 AWG
REM: 18 AWG
Circuit Topology Class
Class-D
Heatsink Type
Extruded Aluminum
Cooling
Convection
Visual Indicators
Power/Protect LED
Fuses
20 Amp (2 x 10 Amp ATO Fuse)
Dimensions
Box H x W x D
Wedge H x W x D1 x D2
15" x 25.8" x 4.8" x 8.5"
380 mm x 656 mm x 122 mm x 215 mm
Shipping Weight
32 Lbs. (14.5 kg)
