M2-500X1

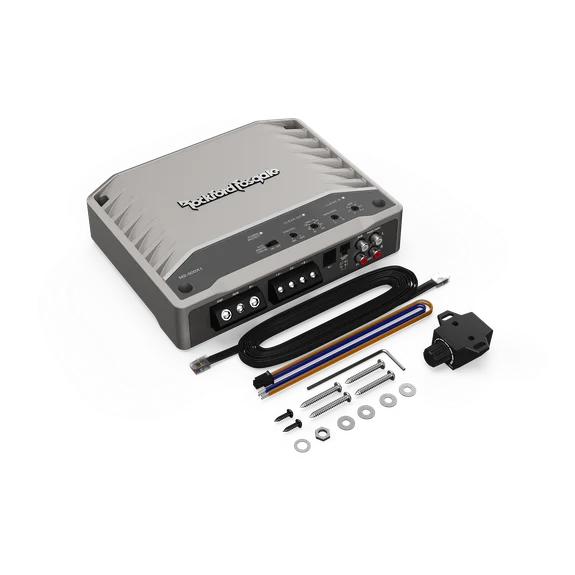

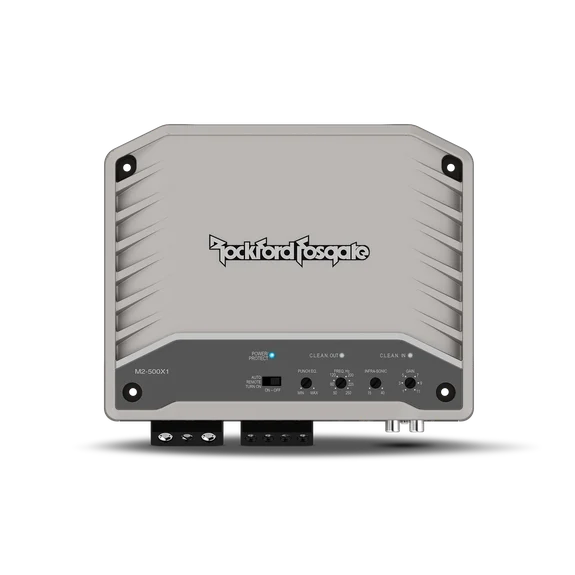

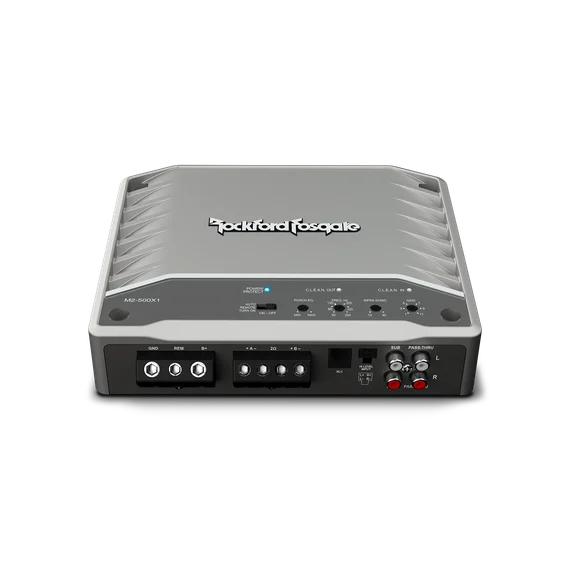

The Rockford Fosgate M2-500X1 is a premium Element Ready marine/powersports mono amplifier designed specifically for subwoofer applications in boats, motorcycles, UTVs, and other harsh-environment installs. The biggest strengths are its marine-grade durability, clean 500W RMS output, and compact efficient Class-D design.

Key Features

• Mono Class-D amplifier
• 500W RMS @ 2Ω
• 300W RMS @ 4Ω

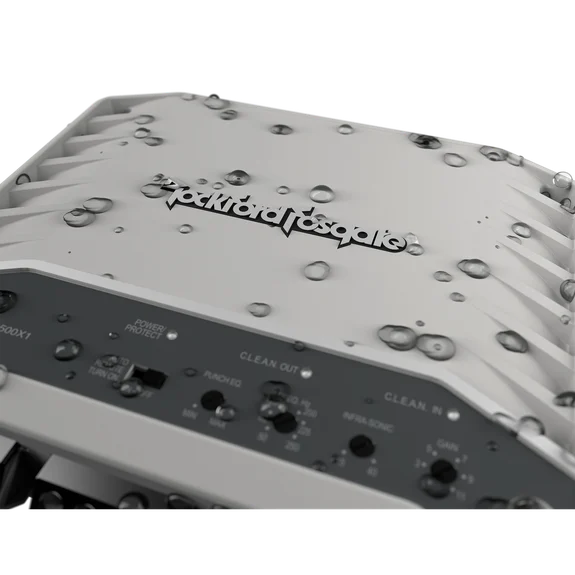

• Element Ready™ chassis
• Conformal-coated PCB boards
• UV-stable powder-coated heatsink
• Zinc nickel-plated marine-grade terminals
• C.L.E.A.N. gain setup system
• Punch EQ bass boost
• Wired bass remote included
• Differential-balanced inputs
• High-level & RCA inputs
• Auto turn-on capability
• MEHSA4 thermal management system

Performance Specifications

• RMS Power:
  • 300W ×1 @ 4Ω
  • 500W ×1 @ 2Ω
• Frequency Response:
  • 20Hz–250Hz
• Low-pass filter:
  • 50–250Hz
• Subsonic filter:
  • 15–40Hz
• Punch EQ:
  • Up to 18dB @ 45Hz
• Recommended power wire:
  • 4 gauge
• Dimensions:
  • 8.5" W
  • 7.75" D
  • 1.9" H
