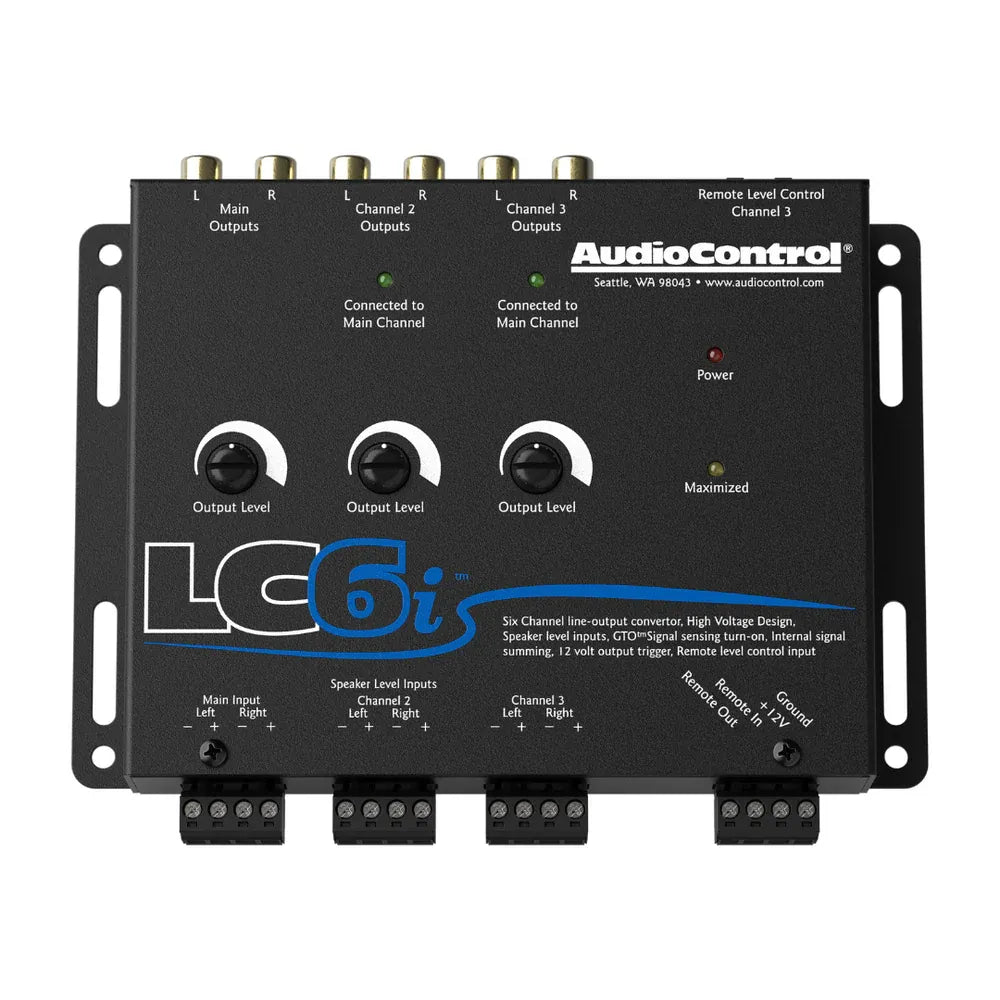

AudioControl LC6i 6-Channel Line Output Converter with Internal Summing

Features

• Speaker Input: Compatible with most factory stereo systems, including Bose systems, with three pairs of inputs accommodating up to 400 watts.
• Channel Summing: Sum multiple input channels (4 or 6) from the factory source unit into two channels, perfect for vehicles with actively crossed-over signals.
• AutoMode Inputs: Channel 2 input automatically feeds channel two and channel three outputs when no signal is present at the channel three input.
• Output Level: Adjustable output level (+/- 12 dB) up to 9.5 volts RMS with individual level adjustments for each RCA output.
• Auto Turn-on: Signal sensing circuit turns on the unit with a speaker-level input signal and turns off when the signal disappears.
• Remote Output: +12 volt DC remote output triggers the amp to turn on, with a maximum current output of 1 amp.
• Optional Sub-Level Control: Add an optional wired remote to easily adjust the output level of channel 3 (subwoofer).
• Ground Isolation: Switchable power supply ground to eliminate ground loop noise, with options for fully isolated, Ground, or 200Ω.
• Terminal Blocks: Removable power/ground/remote in/remote out terminal and speaker level input terminals for easy wiring, accommodating wire up to 12 gauge.

Description

Upgrade your car's audio experience with the AudioControl LC6i 6 Channel Line Out Converter. This powerful device delivers exceptional sound quality and features advanced summing technology for a clean and accurate signal. With AudioControl's patented AccuBASS® technology, the bass response in your audio system is automatically corrected, ensuring a balanced and natural sound. The high-current, low-impedance output stage provides crystal-clear sound with impactful bass. Designed with attention to detail and quality, the LC6i is the perfect addition to any car audio system. With GTO™ Signal Sense circuitry, it seamlessly integrates with your factory radio. Upgrade to the AudioControl LC6i for the ultimate audio performance.

WHAT'S IN THE BOX

• 6-Channel line output converter (black)
• User Guide

SPECIFICATIONS
