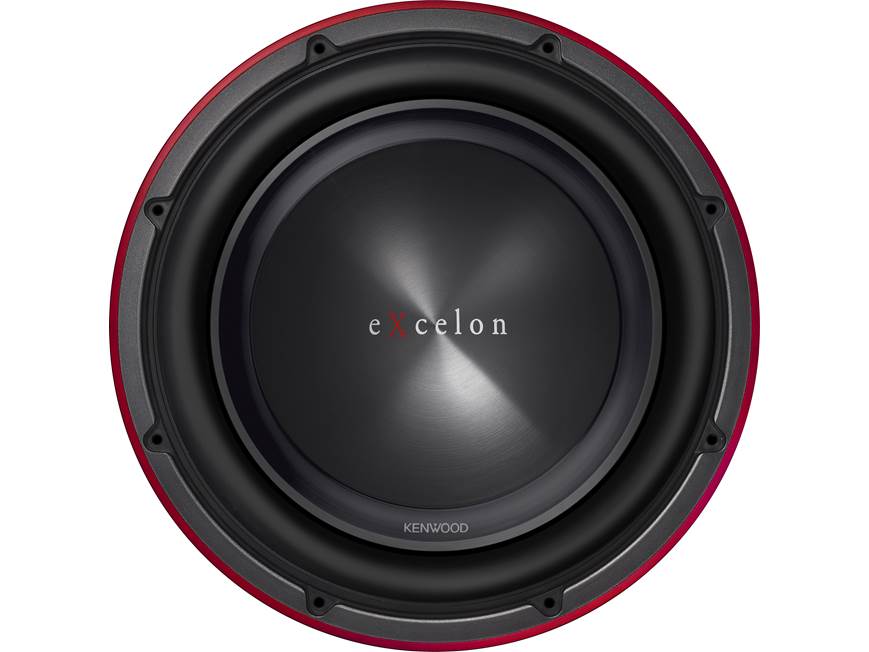

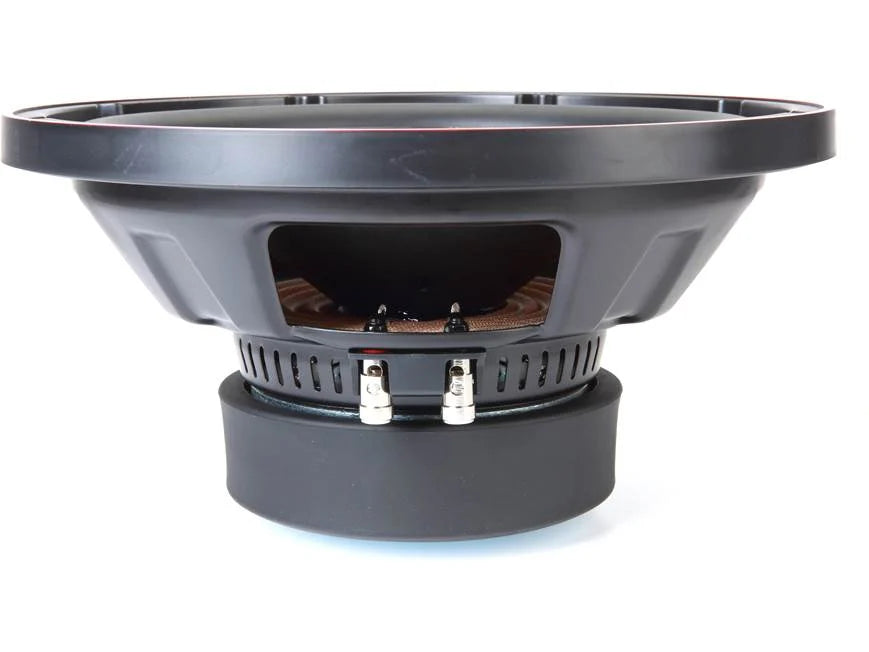

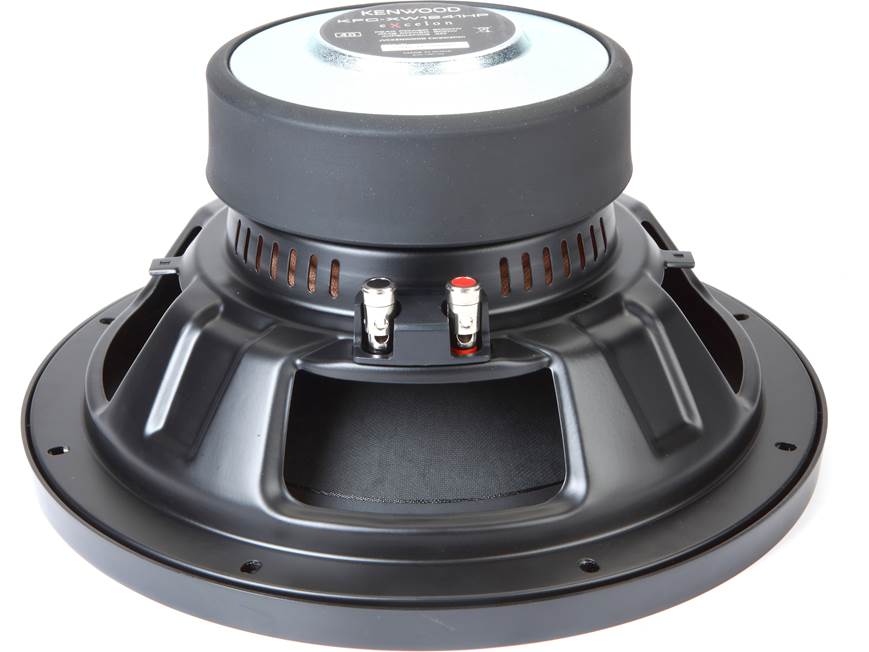

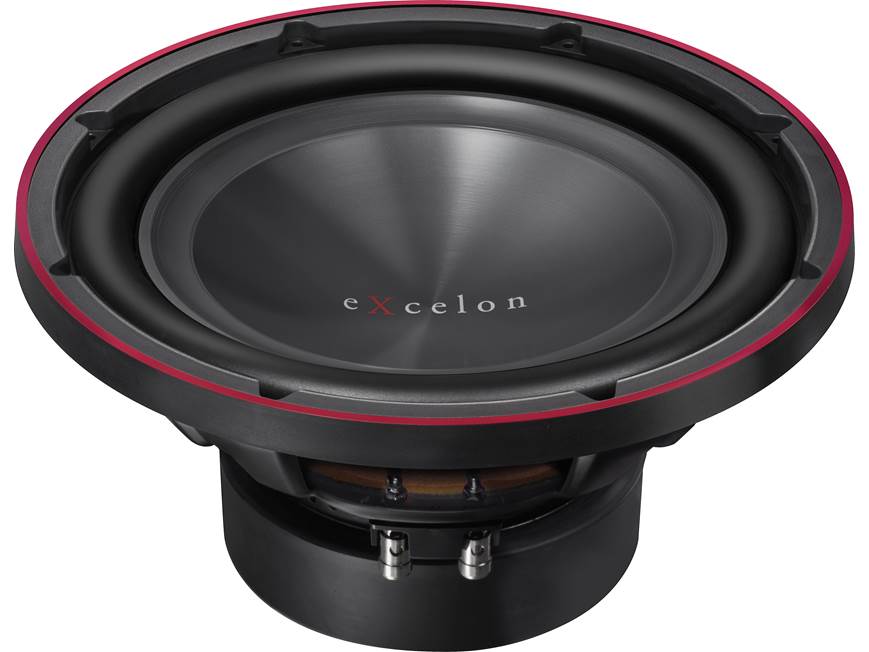

KFC-XW1241HP

The Kenwood Excelon KFC-XW1241HP is a high-performance 12-inch single 4-ohm subwoofer engineered for drivers wanting deep aggressive bass while maintaining excellent sound quality and musical accuracy. Designed as part of the Kenwood Excelon lineup, the KFC-XW1241HP combines advanced thermal management, rigid cone construction, and strong low-frequency extension into a powerful daily-driver subwoofer platform.

Built with a PP Dual Area Cone, advanced airflow cooling system, aluminum bobbin, and stress-controlled spider design, the KFC-XW1241HP is engineered to handle substantial power while reducing distortion and heat buildup during heavy bass playback. Kenwood specifically designed this woofer for both sealed and ported applications, making it highly versatile for custom installs.

Features

• 12” high-performance subwoofer
• Single 4-ohm voice coil
• Excelon High Power Series design
• PP Dual Area Cone construction
• Rubber surround
• Closed yoke motor design
• Advanced airflow cooling system
• Stress-controlled spider
• Aluminum bobbin voice coil
• Heavy-duty steel basket
• High thermal efficiency
• Designed for sealed & ported enclosures
• Excellent low-frequency extension

Specifications

• Speaker Size:
  • 12”
• Voice Coil Configuration:
  • Single 4 Ohm
• RMS Power Handling:
  • 500 Watts RMS
• Peak Power Handling:
  • 2000 Watts Peak
• Frequency Response:
  • 26Hz – 300Hz
• Sensitivity:
  • 83 dB
• Mounting Depth:
  • 5-13/16”
• Cutout Diameter:
  • 11”
• Xmax:
  • 7.8 mm
• Recommended Sealed Box:
  • 1.25 ft³
• Recommended Ported Box:
  • 1.50 ft³

Included In The Box

• (1) KFC-XW1241HP subwoofer
• Mounting hardware
• User manual
• Warranty documentation
