HRN-HRR-NI2

The iDatalink HRN-HRR-NI2 is a vehicle-specific radio replacement harness designed to simplify the installation of an aftermarket radio in select Nissan vehicles. When paired with a compatible iDatalink Maestro RR or RR2 module, this harness allows you to retain important factory features while integrating a modern aftermarket receiver. Its plug-and-play design minimizes wiring complexity and helps deliver a clean, professional installation.

Features

• Designed for select Nissan vehicles
• Compatible with iDatalink Maestro RR and RR2 modules
• Supports installation of aftermarket radios with or without Maestro compatibility
• Retains factory steering wheel controls
• Retains factory amplifier functionality when equipped
• Retains backup camera functionality on supported vehicles
• Enables vehicle information display on compatible aftermarket receivers
• Provides navigation outputs including reverse, parking brake, and vehicle speed sense (VSS)
• Plug-and-play design reduces installation time and wiring modifications
• Compatible with Maestro direct radio adapters for select head units

Specifications

• Part Number: HRN-HRR-NI2
• Application: Radio Replacement Harness
• Vehicle Compatibility: Select Nissan vehicles (2018+ applications; some sources list coverage for select 2017–2020 models)
• Maestro Compatibility: ADS-MRR and ADS-MRR2
• Radio Compatibility: Most aftermarket radios; enhanced functionality with Maestro-compatible receivers
• Connection Type: Plug-and-Play Vehicle-Specific Harness
• Accessory Output: 12V/15A Accessory Output
• Navigation Outputs: Reverse, Parking Brake, and VSS
• Illumination Output: Yes

Retained Factory Features

When used with a Maestro RR or RR2 module and a compatible vehicle, the HRN-HRR-NI2 can retain:

• Steering wheel audio controls
• Factory amplifier integration
• Backup camera functionality
• Vehicle information displays
• Tire pressure monitoring information
• Battery voltage monitoring
• Diagnostic trouble code reading and clearing
• Door status and warning notifications
• Select performance gauge displays on compatible receivers

What's Included

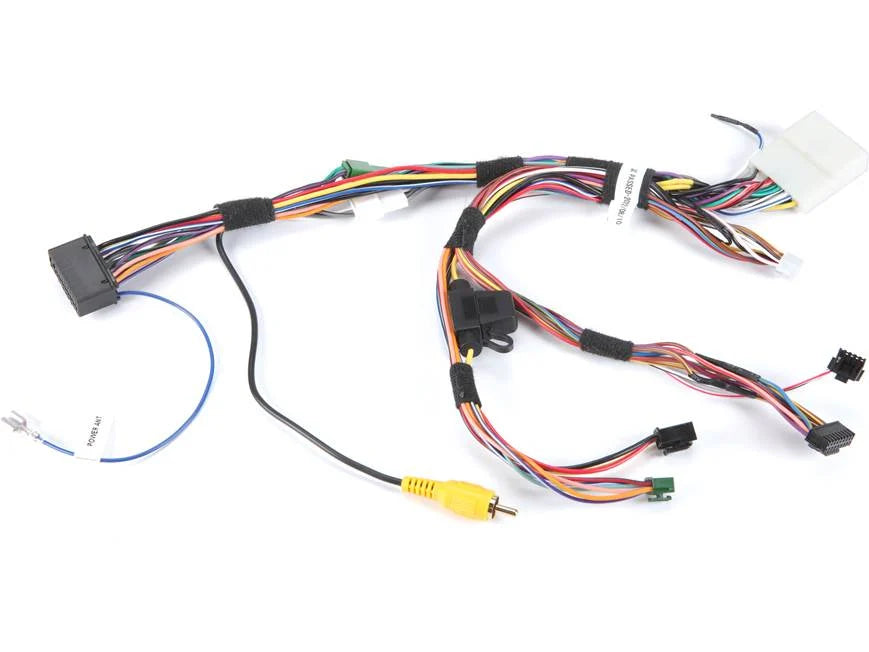

• Vehicle/interface harness

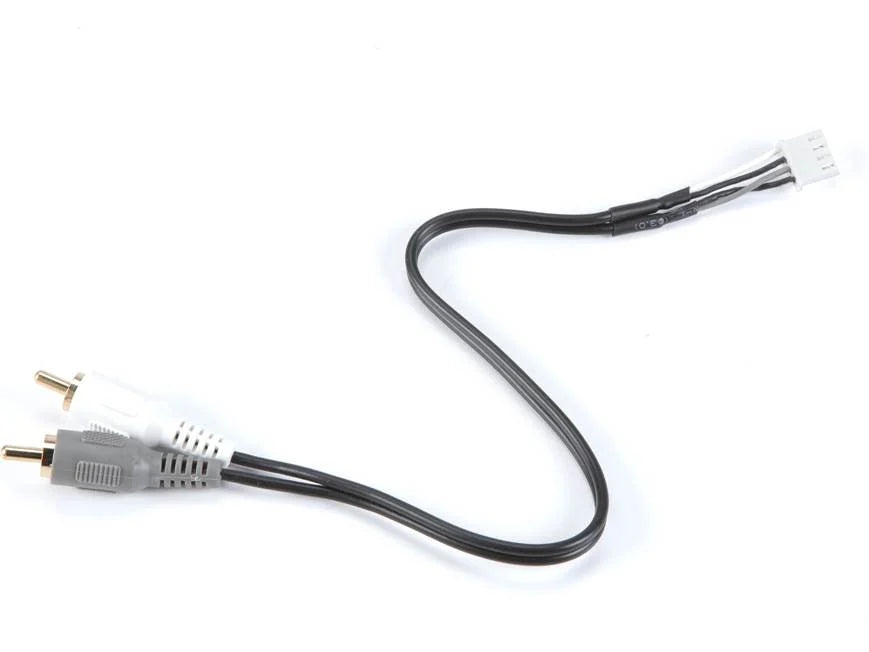

• Front pre-out harness
• Rear pre-out harness

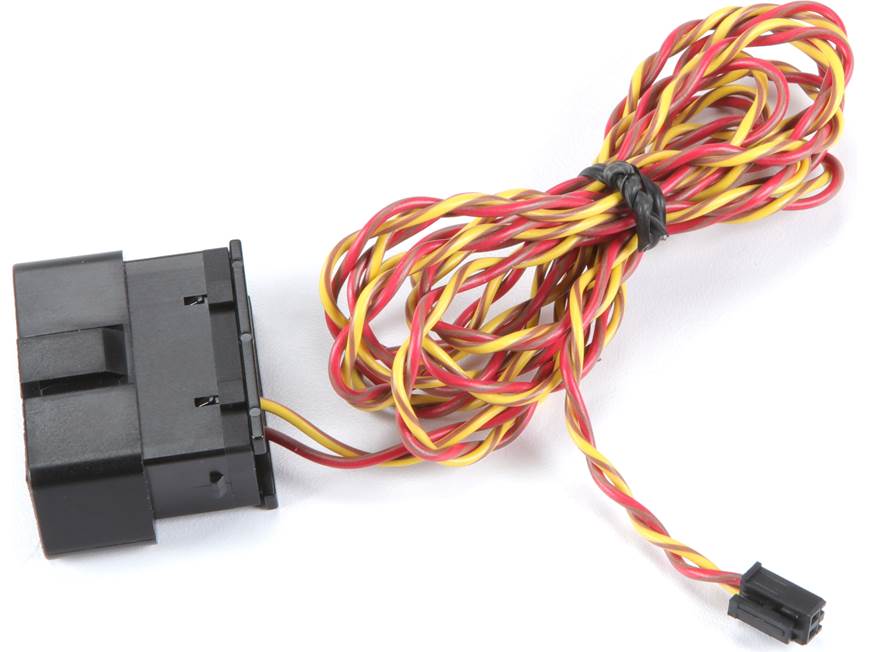

• OBD-II connector harness

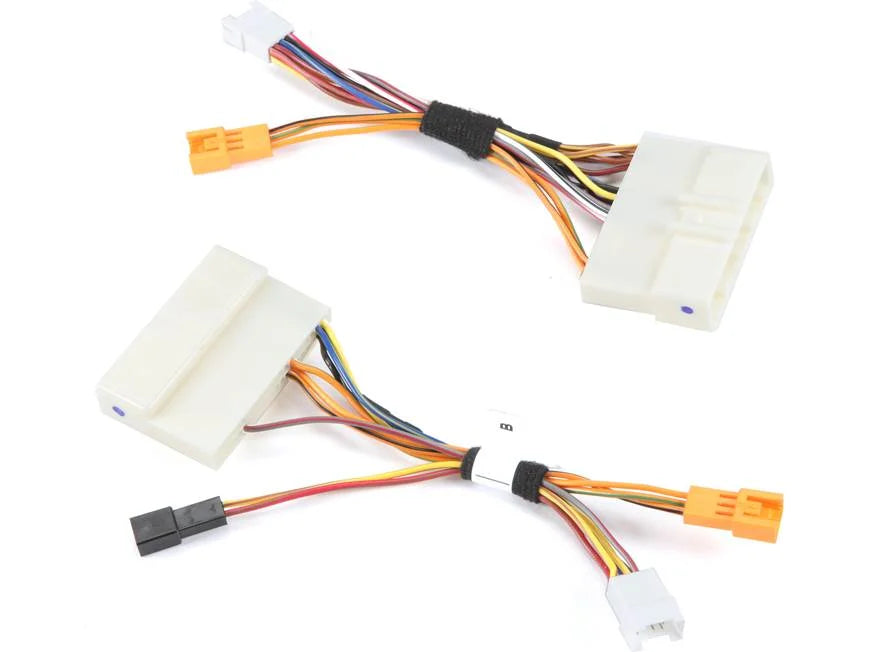

• "A" harness
• "B" harness
• Installation documentation
