Maestro

HRN-HRR-CH2

SKU 210000004338
$64.99
$64.99

HRN-RR-CH2

Plug and Play T-Harness for CH2 Chrysler, Dodge, Jeep Vehicles

iDatalink HRN-RR-CH2 Interface Harness

  • Allows installation of a new receiver in select Chrysler vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
  • Retains the use of your steering wheel audio controls and factory amp in select vehicles
  • Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers

Installation Harness: The iDatalink Maestro HRN-RR-CH2 installation harness greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select Chrysler, Dodge, and Jeep vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit from Kenwood, JVC, Alpine, Sny, and Pioneer; or other aftermarket head unit.

Note: The iDatalink Maestro HRN-RR-CH2 installation harness requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).

Connect a new car stereo and retain steering wheel audio controls and factory amp in select 2004-10 Chrysler-made vehicles (ADS-MRR or ADS-MRR2 module also required)

iDatalink meets Chrysler

iDatalink's HRN-RR-CH2 interface harness allows you to connect a new car stereo in select 2004-10 Chrysler, Dodge, and Jeep vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls and your factory amp in these vehicles.

Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-RR-CH2 installation harness.

  • Steering Wheel Controls
  • Analog or Digital Amp with Turn On, Fader, & Gain

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC. Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-RR-CH2 installation harness.

  • Performances Gauges
  • Vehicle Information (TPMS, Doors, Check Engine)

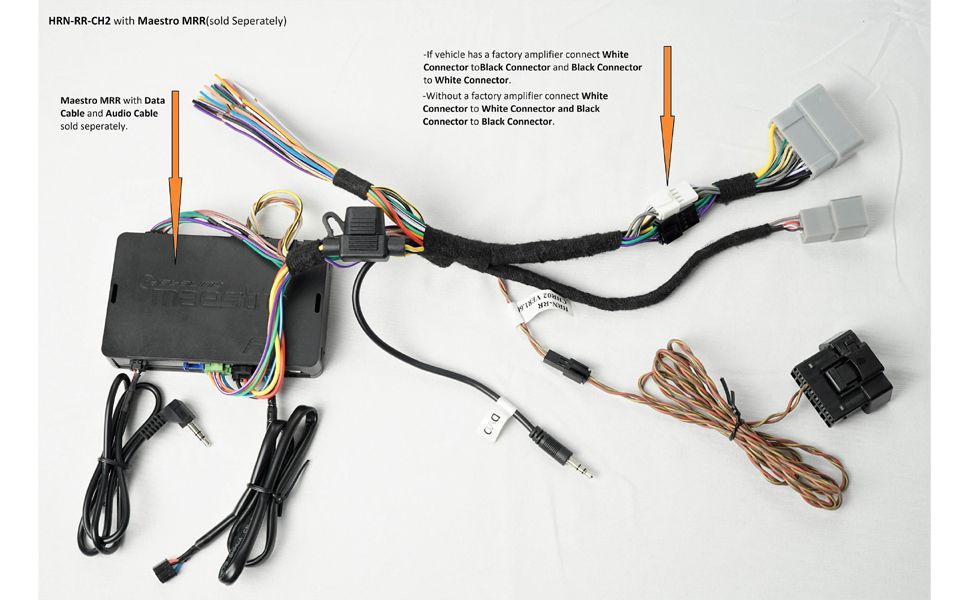

Connections: The iDatalink Maestro HRN-RR-CH2 installation harness contains two Molex connectors which plug into your factory radio harness. On the other end of the harness are four multi-pin connectors which plug into the Maestro RR or RR2 Car Radio Replacement Interface module. In addition, you will need to hardwire the power/ground, illumination, speaker, and navigation output leads of the HRN-RR-CH2 harness to your aftermarket head unit's wiring harness.

Note: When using the HRN-RR-CH2 installation harness, you will not use the additional harnesses that are included with the Maestro RR or RR2 Car Radio Replacement Interface module.

Flashing Module via Weblink Desktop: The iDatalink Maestro RR (ADS-MRR) will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

  • Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
  • Available USB port (version 2.0 or 3.0)
  • 4GB RAM or more
  • 200MB available space on HDD
  • Internet connection

The package includes: connectors that plug in between the Maestro module, your Chrysler radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Keeping your factory features with an iDatalink-ready car stereo

If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Chrysler-built vehicles. You'll also be able to display engine performance data and other vehicle info on your receiver's screen.

Installation note: The HRN-RR-CH2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Chrysler-made vehicle.


What's in the box:

  • iDatalink HRN-RR-CH2 Interface Harness owner's manual

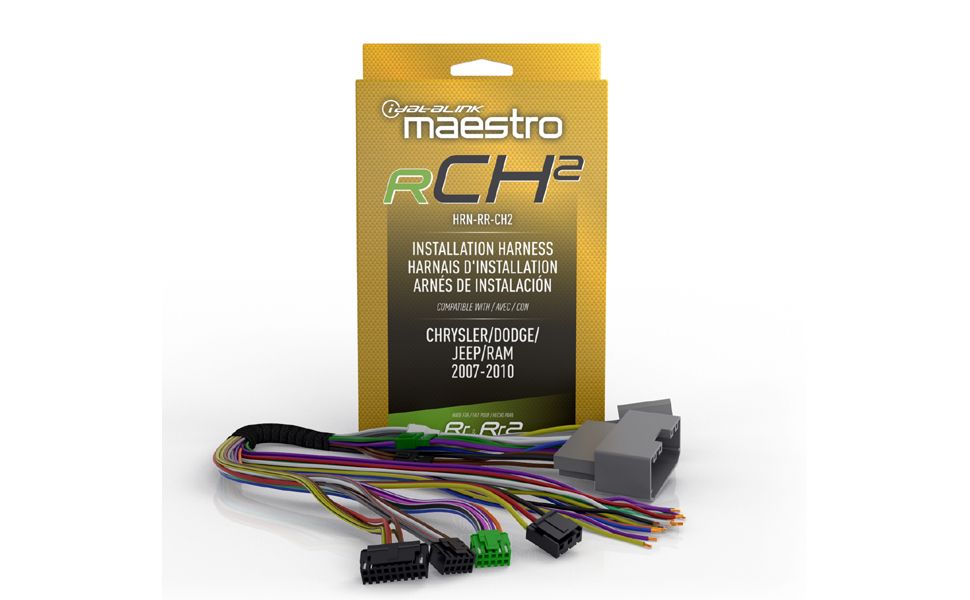

  • Chrysler/Dodge/Jeep installation harness (for use with Maestro RR interface)
  • OBDII harness
