EPIC500

The AudioControl EPIC500 is a compact high-output Class-D monoblock amplifier engineered for drivers wanting powerful bass performance without taking up a lot of space. Designed as part of the AudioControl EPIC Series lineup, the EPIC500 delivers up to 500 watts RMS at 1 ohm while maintaining excellent efficiency and thermal performance in a small chassis.

Built specifically for subwoofer applications, the EPIC500 includes AudioControl’s EPICBoost™ variable bass enhancement system, Linkwitz-Riley crossovers, smart protection circuitry, and compatibility with the legendary AudioControl EPICENTER bass restoration processor. Unlike many budget compact amps, the EPIC500 also includes a wired remote bass level controller for convenient adjustment from the driver’s seat.

Features

• Compact Class-D monoblock amplifier
• 1-ohm stable design
• 500W RMS output
• EPICBoost™ variable bass boost
• Variable low-pass crossover
• Variable subsonic filter
• Smart auto-reset protection circuitry

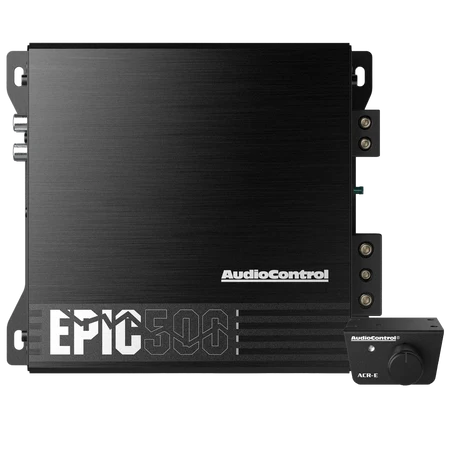

• Wired ACR-E bass remote included
• High-current power supply design
• EPICENTER link compatibility
• Compact low-profile chassis
• Signal-sensing turn-on
• Heavy-duty hex screw terminals

RMS Power Ratings

• 4 Ohm:
  • 250W x 1
• 2 Ohm:
  • 350W x 1
• 1 Ohm:
  • 500W x 1
• Strapped @ 2 Ohm:
  • 1000W RMS

Specifications

• Amplifier Class:
  • Class-D
• Frequency Response:
  • 10Hz – 190Hz
• Signal-To-Noise Ratio:
  • 94 dB
• Low Pass Filter:
  • 40Hz – 180Hz
• Subsonic Filter:
  • Off – 50Hz
• Bass Boost:
  • 0–12 dB
• Power Wire Gauge:
  • 4 AWG
• Speaker Wire Gauge:
  • 8 AWG
• Recommended Fuse:
  • 80A

Dimensions

• Width:
  • 6.1”
• Length:
  • 5.9”
• Height:
  • 2.01”

Included In The Box

• EPIC500 amplifier
• Wired ACR-E bass remote
• Remote cable
• Mounting hardware
• Allen wrench
• EPICENTER link harness
• Installation manual
