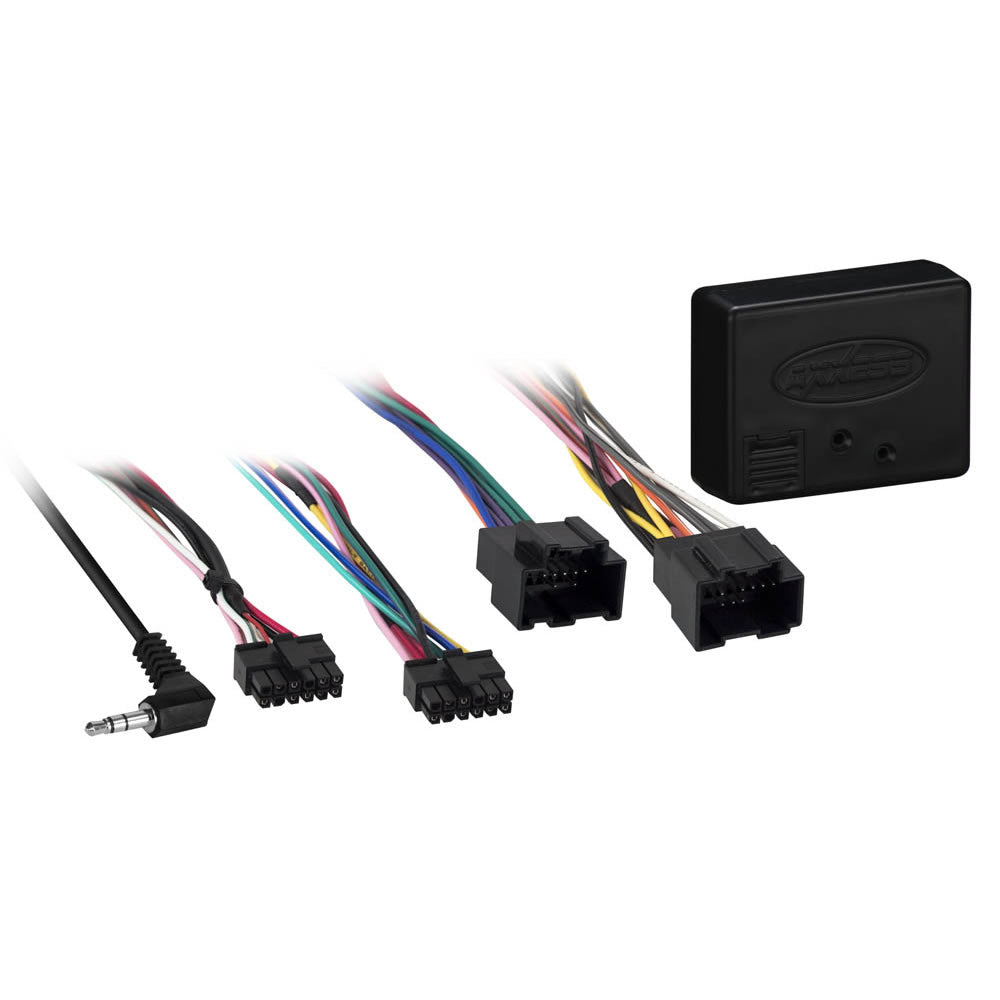

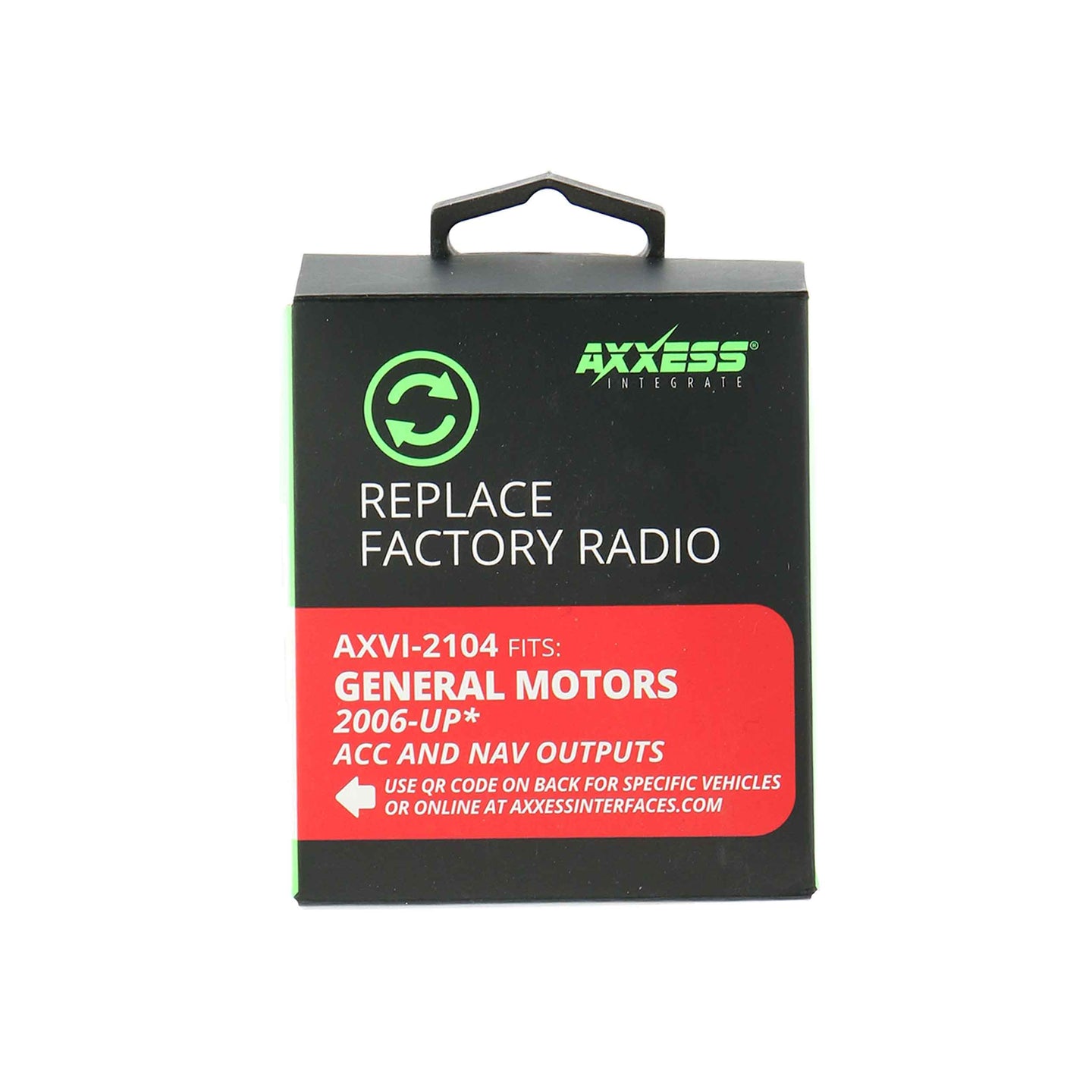

AXVI-2104

The Axxess AXVI-2104 is a GM LAN accessory and navigation output interface designed for select 2006–2012 Chevrolet, Pontiac, and Saturn vehicles. It allows installation of an aftermarket radio while retaining important OEM functionality such as Retained Accessory Power (R.A.P.) and provides navigation outputs including reverse, parking brake, and vehicle speed sense (VSS). It is primarily designed for non-amplified systems or for vehicles where the factory amplifier is being bypassed.

Features & Highlights

• Provides 12V accessory power output (10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Designed for non-amplified systems or amplifier bypass installs
• Provides navigation outputs:
  • Parking brake
  • Reverse trigger
  • Vehicle speed sense (VSS)
• Pre-wired for AXSWC steering wheel control interface
• High-level speaker input support
• Micro-B USB firmware updatable
• Plug-and-play style installation
• Compatible with aftermarket multimedia radios including Apple CarPlay and Android Auto

Specifications

Compatible Vehicle Applications

• Chevrolet Cobalt (2007–2010)
• Chevrolet HHR (2006–2011)
• Chevrolet Malibu (2008–2012)
• Pontiac G5 (2007–2009)
• Pontiac G6 (2009–2010)
• Pontiac Solstice (2006–2009)
• Saturn Aura (2007–2009)
• Saturn Sky (2006–2009)
