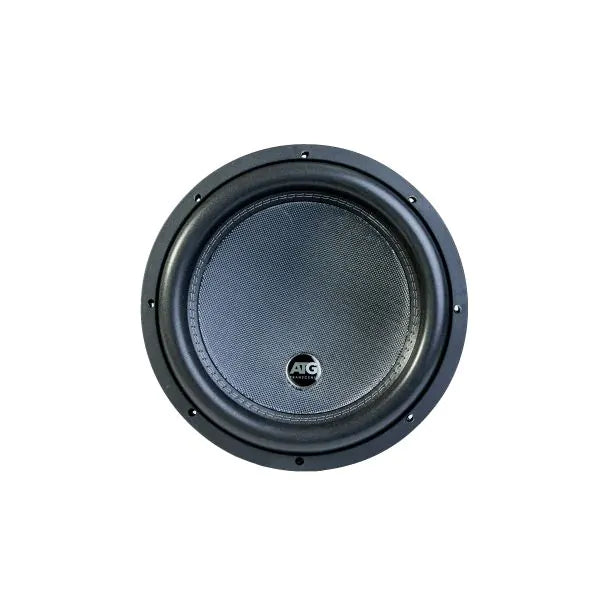

ATG-TS12X2.4

The ATG Audio ATG-TS12X2.4 is a high-power 12-inch Transcend Series subwoofer designed for aggressive bass systems and high-output daily builds. Built with a massive motor structure, 3-inch BASV high-temperature voice coil, and dual 4-ohm voice coils, this woofer is engineered to handle serious amplifier power while maintaining deep, controlled low-frequency response.

The Transcend line is ATG Audio’s upper-tier subwoofer series and is aimed at users wanting loud, musical bass with strong thermal handling and durable suspension components. The non-pressed paper cone and double-stitched foam surround help deliver a deeper, more natural low-end response compared to many SPL-only woofers.

Key Features:

• 12-inch competition-style subwoofer
• Dual 4-ohm voice coils (DVC)
• 1500W RMS power handling
• 3000W max power
• 3" BASV high-temperature voice coil
• Non-pressed paper cone
• Double-stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large-gauge compression terminals
• Protective magnet boot

Performance Specifications:

• RMS Power: 1500 watts
• Peak Power: 3000 watts
• Impedance: Dual 4Ω
• Voice Coil: 3-inch BASV
• Basket: Die-cast aluminum
• Cone Material: Non-pressed paper
• Surround: Double-stitched foam

Installation Notes:

• Can be wired to:
  • 1Ω final load (parallel)
  • 4Ω final load (series)
• Best paired with:
  • 1200W–2000W RMS monoblock amplifier
  • Large ported enclosure for maximum output
  • Upgraded electrical system recommended
