AC-LGD-60

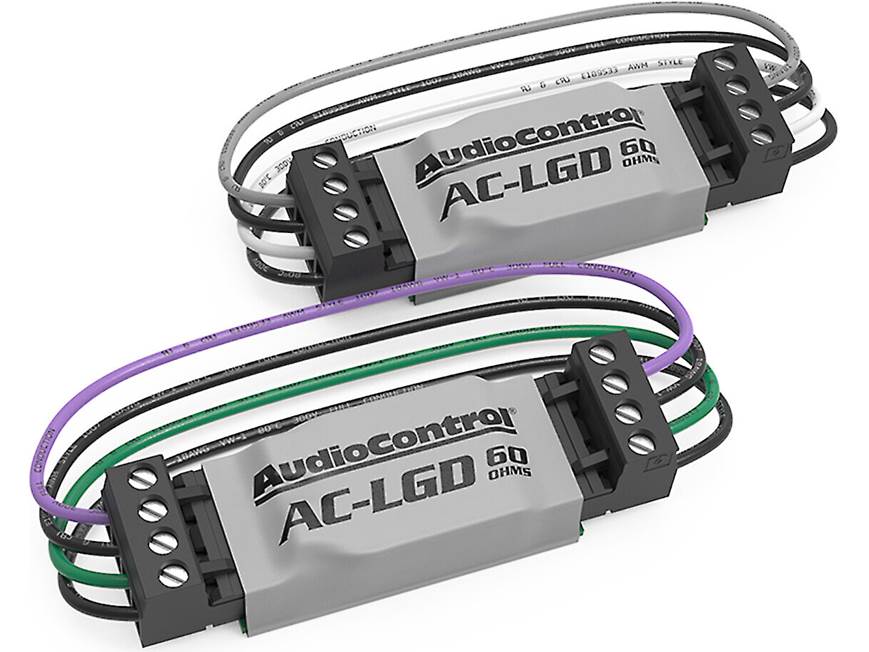

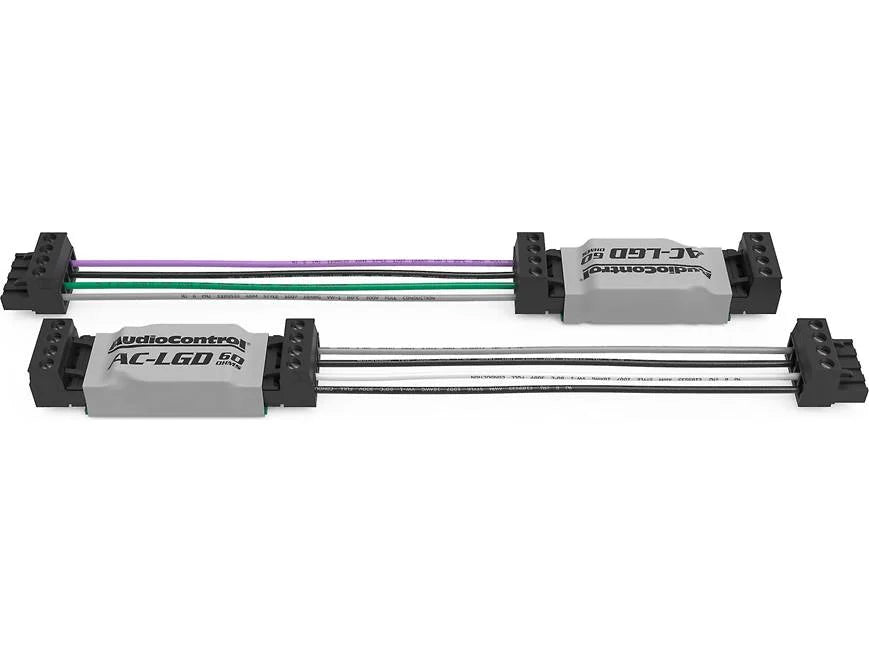

The AudioControl AC-LGD-60 is a load-generating device and signal stabilizer designed for premium amplified factory audio systems. Many modern OEM amplifiers monitor speaker impedance and may mute, distort, or alter audio signals when factory speakers are removed during an aftermarket upgrade. The AC-LGD-60 simulates the proper speaker load, ensuring stable signal output and optimal performance when integrating amplifiers, DSPs, or line output converters into factory sound systems.

Key Features

• Designed for premium amplified OEM sound systems
• Ideal for select Dodge, Chrysler, Jeep, Maserati, and other factory amplified vehicles
• Prevents factory amplifier muting and signal instability
• Stabilizes audio signals for cleaner sound and improved system performance
• Helps maintain high-frequency clarity and reduce unwanted noise
• Compatible with aftermarket amplifiers, DSPs, and line output converters
• Pre-wired with EIA-standard color-coded wiring for easy installation
• Sold as a pair for front or rear channel integration
• Compact design allows for convenient installation behind panels or dashboards

Specifications

• Maximum Input Voltage: 25 Vrms (150 Watts)
• Input Impedance: 60 Ohms
• Dimensions (without wiring): 2.3" L x 1.0" W x 0.06" H
• Dimensions (with wiring): 9.75" L x 1.0" W x 0.06" H
• Weight: 1.4 oz (39 g) per unit
• Includes one pair of pre-wired AC-LGD-60 modules
