AC-LGD-20

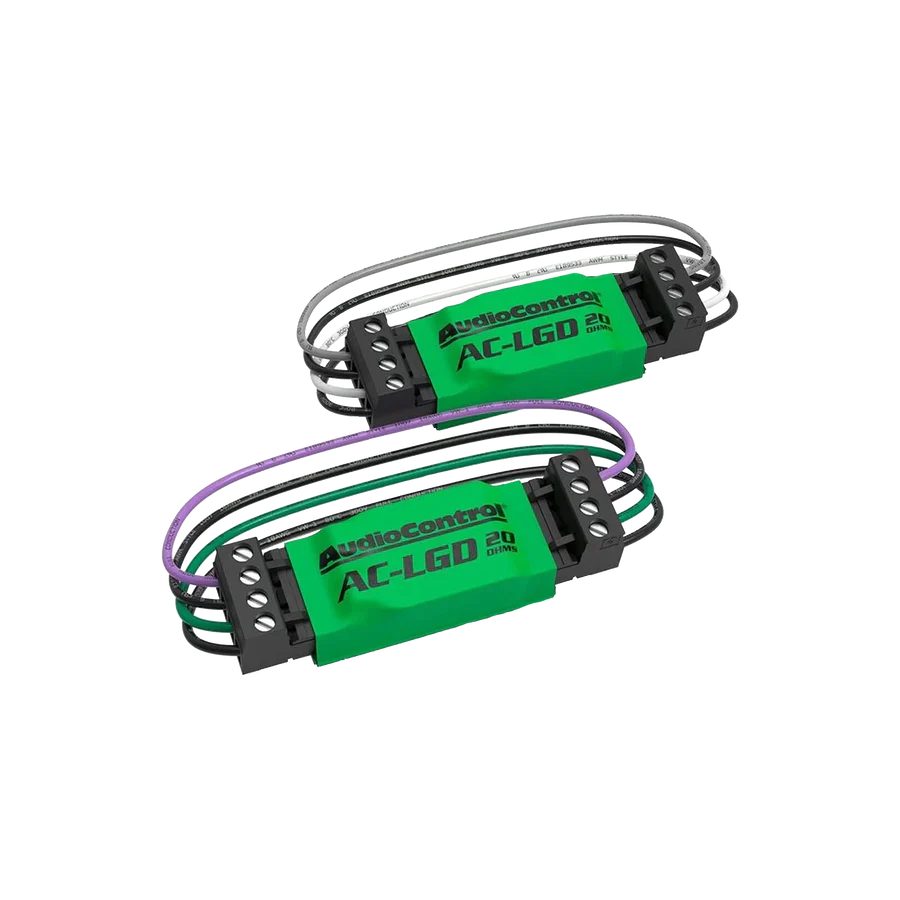

The AudioControl AC-LGD-20 is a load-generating device designed to maintain proper signal output from factory audio systems when upgrading speakers, amplifiers, or adding a line output converter. Many modern OEM audio systems monitor speaker load and may reduce or mute audio signals when factory speakers are disconnected. The AC-LGD-20 simulates the proper speaker load, ensuring consistent audio performance and preventing factory radio or amplifier issues during aftermarket upgrades.

Key Features

• Designed to stabilize factory audio signals during aftermarket installations
• Prevents audio muting caused by OEM speaker-load detection circuits
• Ideal for many Dodge, Chrysler, Jeep, Maserati, and other factory sound systems
• Installs between factory speaker outputs and amplifiers, DSPs, or line output converters
• Pre-wired with EIA-standard wire colors for simplified installation
• Sold as a pair for front or rear channel integration
• Compact design allows easy mounting behind panels or dashboards
• Compatible with AudioControl integration products and many aftermarket audio systems

Specifications

• Maximum Input Voltage: 15 Vrms (50 Watts)
• Input Impedance: 20 Ohms
• Dimensions (without wiring): 2.3" L x 1.0" W x 0.06" H
• Weight: 1.4 oz (39 g) each
• Includes one pair of pre-wired load-generating devices
