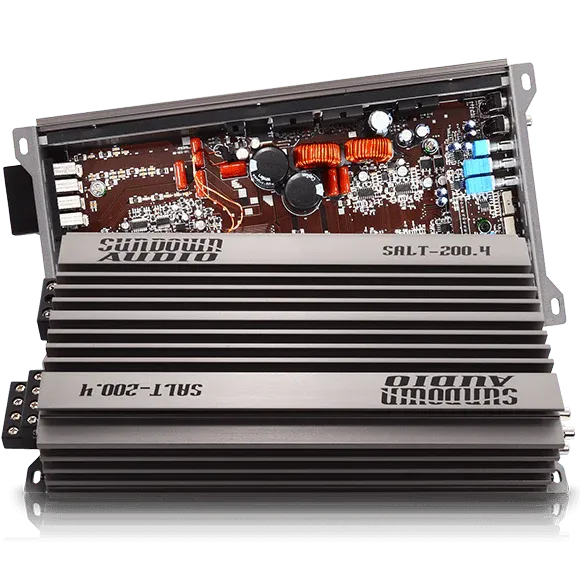

SALT-200.4

4-CHANNEL AMPLIFIER

• 700 x 2 @ 4 ohms RMS
• 325 x 4 @ 2 ohms RMS
• 200 x 4 @ 4 ohms RMS bridged
• 4-channel full-range amplifier: 10Hz – 25 kHz
• Variable 12dB high & low pass filters: 50HZ - 500HZ
• Variable 12dB subsonic filter: 10HZ - 500HZ
• X1/X10 crossover multiplier
• Power, clipping & protection indicators included
• Thermal, voltage, speaker short, and dc-offset protection circuitry
• Optional wired remote control displays voltage, temperature, and clipping display

Producing optimum power at realistic voltages (the 12s, rather than needing 14+ volts), the SALT – Sundown Audio Low-Voltage Technology – is Sundown’s answer! SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. Whether you are a world-class SPL competitor or a hardcore sound quality fan, the SALT series will be right at home in your system.

SPECIFICATIONS

Input Sensitivity: 6V - 0.2V
Double Sided Through Hole Epoxy PCB
Efficiency: 75% 4OHM, at 100HZ
Signal / Noise Ratio: 105DB <
Damping Factor: 400 <
Tested Voltage & THD: 12.8V & Less Than 1% THD
Operation Voltage: DC 9V - 15.5V Power Input
Recommended Fuse: 120 Amps
Dimensions: 11.82” L x 6.85” W x 2.66” H4-channel full-range amplifier: 10Hz – 25 kHz
