Welcome to our online store!
Before placing an order, please contact us at 480-396-9003 for fitment information on our products. Returns will not be accepted on orders where the fitment information is incorrect.

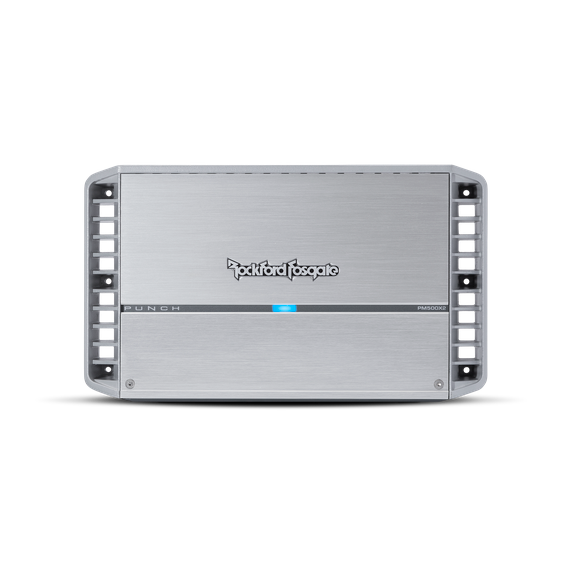

PM500X2
Punch Marine 500 Watt 2-Channel Amplifier
PM500X2
The PM500X2 is a 500 Watt 2-channel amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications.
The PM500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- Features C.L.E.A.N. Set-up
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- RCA pass-thru outputs
- Short circuit protection
- Over current protection
- Marine grade 2-part epoxy coated PCB
- Cast aluminum heatsink
- Muted turn on
- Marine grade stainless steel hardware
- Stealth top mounted control panel
- 2-Year Warranty
SPECIFICATIONS
Cta-2006 Compliant | Remote Controls | Optional Punch Level Control (PLC2) Ready | |
Number of Channels | 2 | Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
Total Power (Sum of Rated Power) |
500 Watts | Power Wire Gauge | 4 AWG |
Rated Power (RMS Continuous Power) |
150 Watts x 2 @ 4-Ohm 250 Watts x 2 @ 2-Ohm 500 Watts x 1 @ 4-Ohm Bridged |
Power Input Connector | Captive C-Clamp |
Dynamic Power (PVC/PowerCube®) |
223 Watts x 2 @ 4-Ohms 0° Res 365 Watts x 2 @ 2-Ohms 0° Res |
Speaker Wire Gauge | 8 AWG to 18 AWG |
Bridgeable | Yes | Speaker Output Connector | Captive C-Clamp |
Frequency Response | 20Hz to 20kHz +/- 1.0dB | Cooling | Convection |
Input Sensitivity | 150 mV - 12 V | Heatsink | |
Circuit Topology Class | Class A/B | Operating Voltage | 9 - 16 VDC |
Efficiency (average) | 73% @ 4-Ohm | Recommended Fuse (not included) |
80 A |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
Average Current Draw (13.8V Music) | 40 A |
Signal Input | Hi/Low level: 1 RCA pair | Max. Current Draw (13.8V Sinewave) | 80 A |
Signal Output | Low level: 1 RCA pair | Suggested Alternator | 75 A |
Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12kHz Function depends upon LP/AP/HP switch position |
Dimensions (H x W x D) | 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm) |
Crossover Controls | High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes |
Shipping Weight | 12.3 Lbs. (5.57 Kg.) |
