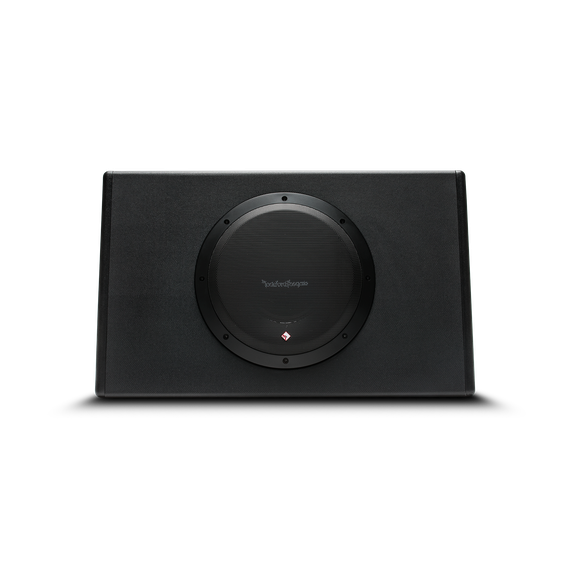

Punch 10" 300-Watt Powered Truck Enclosure
The Punch P300-10T is a universal "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 10" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
The Punch 300-10T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 10" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
FEATURES AT A GLANCE
- High-Efficiency, Low Current Amplifier Design
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Optimized 10" Low Impedance Woofer
- On Board Phase Switch
- Intelligent auto turn on/off function
- Quick Input Connections for Easy Removal
- Adjustable 12db/Octave low pass crossover
- Robust Power/Ground connections
- Remote bass level control included
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- On Board Adjustable Bass EQ
- 1 Year Warranty
- Slim Design For Truck Applications
- Thermal and over/under voltage protection
- Separate low level and speaker level inputs
SPECIFICATIONS
| CEA-2031 Compliant | Remote Control | Punch Level Control (Included) Replacement Part: 1130-59232-01 |
|
| CEA-2006 Compliant | Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
|
| Frequency Response |
25 Hz to 200 Hz | Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Woofer Quantity | 1 | Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) Replacement Part: 1130-59232-01 |
| Woofer Size | 10" | Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Woofer Series | Proprietary | Input Impedance | 20k Ohms |
| Nominal Impedance | -- | Power Input Connector | Quick Disconnect Replacement Part: 1130-59232-01 |
| Power Handling (Watts RMS) |
300 Watts RMS | Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Enclosure Type | Sealed | Circuit Topology Class | Class-D |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard | Heatsink Type | Extruded Aluminum |
| Speaker Connector | -- | Cooling | Convection |
| Integrated Amplifier | 300 Watts RMS | Visual Indicators | Power/Protect LED |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
| Tone Controls | Bass Boost 0 dB to +12 dB; |
Dimensions Box H x W x D Wedge H x W x D1 x D2 |
13.3" x 21.7" x 4.8" x 7.9" 338 mm x 552 mm x 122 mm x 201 mm |
| 25Phase Control | 0° to 180° | Shipping Weight | 25 lbs. (11.3 kg) |
